Pump Control Panel

Brand: Ktech Industrial Products Inc
Add Product to My Catalog

PC1104-3R-HLL-Box-01.png PC1103A-HLLK-3R-120V-Box-01.png PC1104-L-R-01.png PC1104-HL-2R-98-01.png
A Pump Control Panel is used in the automation of the machinery in motor control applications that are a part of water-based systems.

This type of control panel consists of several power components that control the function of the pump motor, and also the various devices for operator control.

1 - 5 of 5 Part Numbers

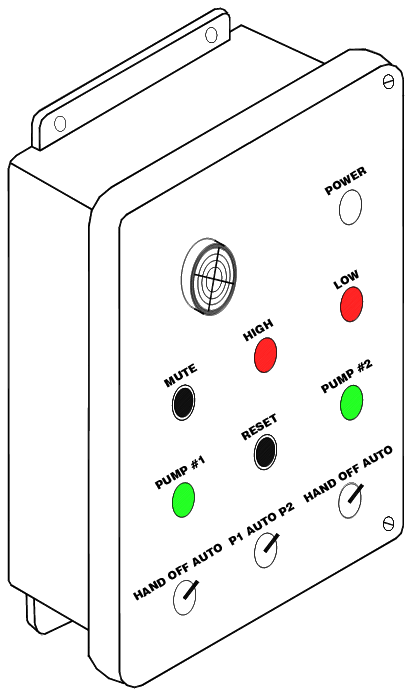

PC1103A-HL-2R
PC1103A-HL-2R
Electrical Specifications: 120VAC, 60 Hz, 13.8A 13 and 14, 15 and 16
  • Pump contactor outputs at terminals 17 and 18, 19 and 20
  • Switch inputs at terminals 1 and 2, 3 and 4, 5 and 6, 7 and 8
  • Relay outputs at terminals 9 and 10, 11 and 12
  • Wire Gauge Range is 20-10AWG

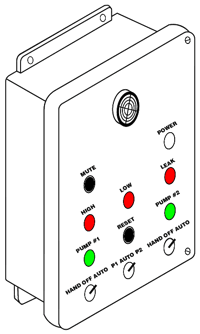

PC1103A-HLLK-3R-120V
PC1103A-HLLK-3R-120V
Electrical Specifications: 120VAC, 60 Hz, 9.8A (x2) 17 and 18, 19 and 20
  • Switch inputs at terminals 1 and 2, 3 and 4, 5 and 6, 7 and 8, 9 and 10
  • Pump Contactor output at terminals 21 and 22, 23 and 24
  • N.O. Relay Output at terminals 11 and 12, 13 and 14, 15 and 16

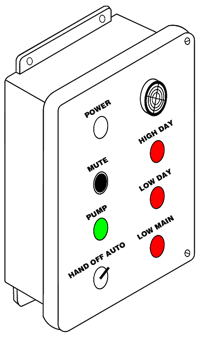

PC1104-3R-HLL
PC1104-3R-HLL
Electrical Specifications: 120VAC, 60 Hz, 1PH, 1/3Hp 7.2A
  • Switch inputs at terminals 1 and 2, 3 and 4, 5 and 6, 7 and 8, 9 and 10
  • High, Low Day and  Low Main relay contact outputs at terminals, 11 and 12, 13 and 14, 15 and 16 Pump output at terminals 19 and 20

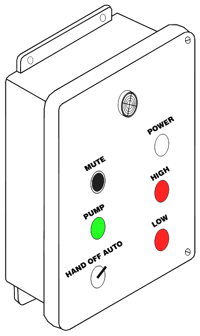

PC1104-HL-2R-98
PC1104-HL-2R-98
Electrical Specifications: 120VAC, 60 Hz, 1PH, 1/2Hp 9.8A
  • Switch inputs at terminals 1 and 2, 3 and 4, 5 and 6, 7 and 8
  • High and Low relay contact outputs at terminals 9 and 10, 11 and 12
  • Pump output at terminals 15 and 16

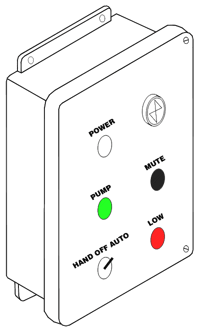

PC1104-L-R
PC1104-L-R
Electrical Specifications: 120VAC, 60 Hz, 1PH, 1/3 HP, 7.2A
  • Switch inputs at terminals 1 and 2, 3 and 4, 5 and 6
  • Low relay contact output at terminals 9 and 10
  • Pump control output at terminals 11 and 12
1 - 5 of 5 Part Numbers

Specifications

Brand

Electrical Specifications

  • 120 Vac, 60 Hz, 13.8A 13 and 14, 15 and 16
  • 120 Vac, 60 Hz, 9.8A (x2) 17 and 18, 19 and 20
  • 120 Vac, 60 Hz, 1-phase, 1/3 hp 7.2A
  • 120 Vac, 60 Hz, 1-phase, 1/2 hp 9.8A
  • 120 Vac, 60 Hz, 1-phase, 1/3 HP, 7.2A

Horn

  • 95 dB @ 1 ft

Documentation

Datasheet
