Xpac Electraulics Actuators & Drives
Brand: Rexa, Inc

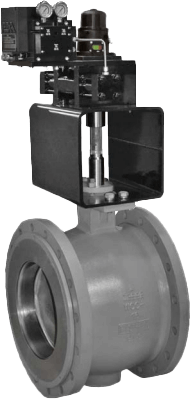

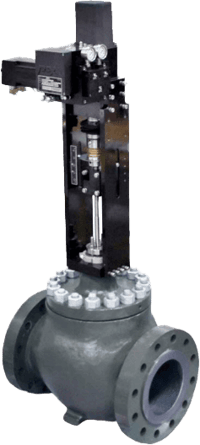

The REXA Xpac Electraulic™ Actuator is a superior positioning device well suited for critical control applications.
The product is designed to control severe process conditions in harsh environments and provide high reliability.
Electraulic™ Actuators and Drives provide the final control element capabilities to match the most sophisticated instrumentation and distributed control systems.
The Xpac is comprised of the mechanical subassembly and the electrical subassembly.
The mechanical subassembly consists of a double acting hydraulic cylinder, position feedback sensor and an Electraulic™ Power Module.
The power module is a unique, self-contained, sealed hydraulic pumping system which manages oil pressure and flow to and from the cylinder.
The electrical subassembly consists of the power supplies, motor drivers and a dedicated microprocessor.
The combination of these mechanical, hydraulic and electronic technologies gives the Xpac its state of the art capability.
Features- Simple, user-friendly calibration
- No routine maintenance
- Fail-safe capable
- Environmental rating: NEMA 4X (IP66)
- Hazardous area rated: CSA/ATEX/IEC
- Low and high temperature configurations available
Specifications
Brand
Deadband
- Adjustable from 0.05 % to 5.0 %
Positioning Accuracy
- < 0.15 % of full stroke
Response
- 1.5 Hz for B and C size power modules
- > 5 Hz for 1/2D and D size power modules
Deadtime
- 50 - 70 ms
Duty Cycle
- 100 % full modulating
Control Signal
- Analog: 4-20 mA
- HART Compatible
Temperature Range
- Stepper: -40° to 140° F
- Servo: -40° to 120° F
Voltages
- B, C, and 1/2D Module: 115 Vac (STD), 230 Vac (OPT), 1Ø
- D Module: 115 Vac (OPT), 230 Vac (STD), 1Ø
- DP9, DP20 and DP40 Module: 230 Vac (STD), 3Ø
Outputs
- Linear: 2,000 lbf to 275,000 lbf
- Rotary/Drive: 2,500 in-lbf to 1,500,000 in-lbf
Stroke Range
- 3/4" to 120"
Rotation Range
- 90°, 120°, or 270°
Compliance & Certification
- NEMA 4X
- IP66
- CSA
- ATEX
- IECEx
- INMETRO
- CE
- Oil & Gas
- Power Generation
- Rotating Equipment
- Water & Wastewater
- Metals & Mining
