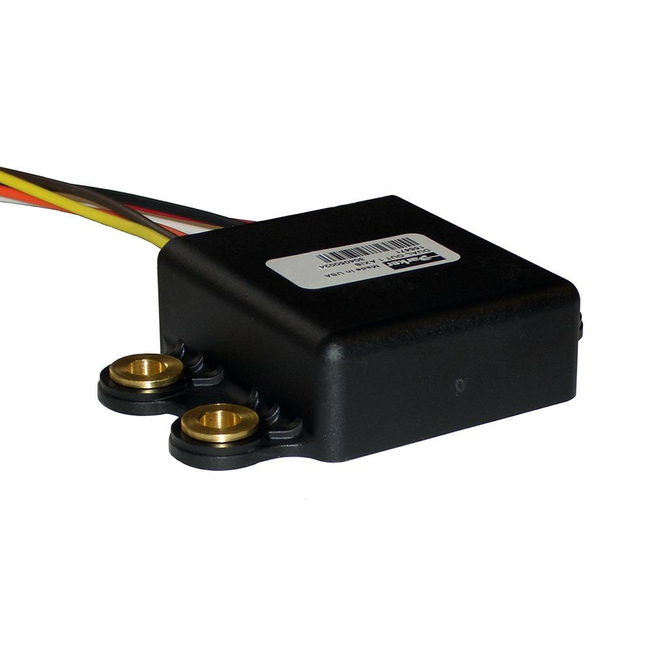

Accelerometer & Inclinometer Sensors - ACC Series
Brand: Parker HannifinParker's Accelerometer and Inclinometer Sensors are MEMs devices with an output voltage dependent on the amount of inertial force applied.
The accelerometers and inclinometers have an inertial range up to ±1.5G.
Parker's ACC series is a family of inertial sensors for mobile and other applications.
The sensors are analog output and have an inertial range of up to ±1.5G.
Two versions are offered to that can be used to indicate acceleration or level position.
The sensors are designed using MEMs technology and a high level of EMI immunity for trouble free operation.
They are built in a single package with no external moving components and able to withstand rugged applications
The potted design combined with the sealed connector give the sensors IP67 protection for outdoor applications.
Features- Glass-filled nylon plastic body for corrosion resistance.
- SXL automotive wire
- ±40 degrees or ±90 degrees (±1.5G) range.
- No moving parts.
Specifications
Brand
Electrical Connectors
- DTM04-3P, DTM04-4P
Electrical Output Range
- ± 1.5 G, ± 0.64 G (± 40°)
Housing Material
- Nylon, Glass-Filled
IP Protection Rating
- 67
Maximum Supply Current
- 10 mA, 5 mA
Maximum Working Temperature (°C)
- 125°, 85° C
Minimum Working Temperature (°C)
- -40° C
Mounting Holes
- 7.14 mm (x2), 8 mm (x3)
Mounting Option
- Flanged
Number of Outputs
- 1, 2, Opposing
Power Supply
- Regulated 5 Vdc
Sensor Type
- Tip/Tilt
Signal Output
- 0.5 to 4.5 Vdc, 1.675 to 3.192 Vdc
- Cab and seats
- Conveyor
- Boom, outrigger, and other implement position
