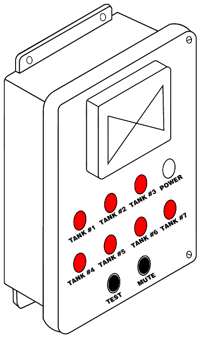

AL201 Indoor Alarm Panel
Brand: Ktech Industrial Products Inc

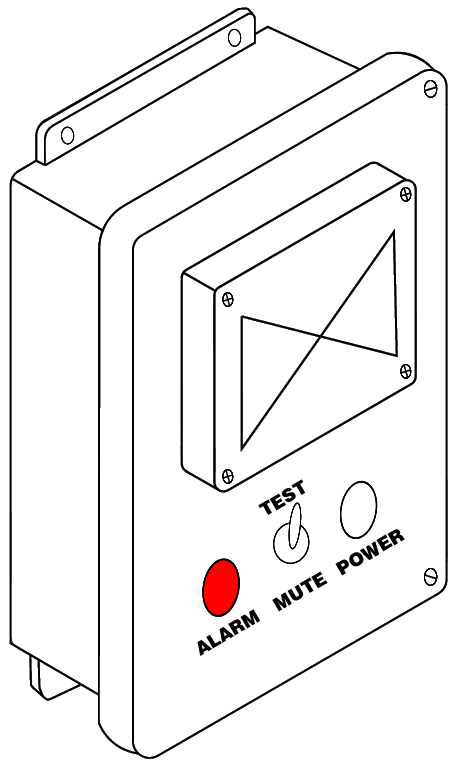

The Model AL201-1 is a weatherproof alarm panel that accepts a switch contact input and provides an audible alarm signal when the external contact is closed.
The white pilot light indicates the 120 VAC power.
The test toggle-switch is a momentary switch that turns on the red light and the horn when pushed up.
The red pilot lights provide the visual alarm indication for the alarm contact.
The mute toggle-switch is a momentary switch that mutes the horn for the alarm input when pushed down.
In the event of a power failure the alarm will come back on with the power.
The red light remains on until the alarm condition is corrected.
The alarm circuit resets automatically.
It must be mounted in a non-hazardous location.
Use Ktech float switches for the alarm input contacts.
The panel is ULC Type 4 rated - equivalent to Nema 4.
Specifications
Electrical Specifications
- 120 Vac, 60 Hz, 250 mA
- 120 VCA, 60 Hz, 300 mA
