Add the InspectorP64x 2D Machine Vision to your store or catalog
Book Your Demo and See How
or create your store

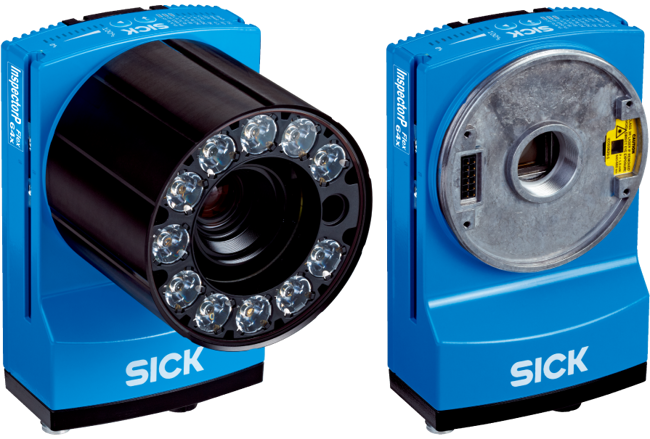

2D Machine Vision, InspectorP65x.png

InspectorP64x 2D Machine Vision

Brand: Sick AG
Add Product to My Catalog

The InspectorP64x is an industrial programmable and configurable 2D vision camera for long-range and high-speed vision tasks. Boasting an image resolution of 1.7 megapixels, an IP 65 housing, and a flexible high-end optical design, it is perfectly equipped to meet demanding automation environments.

The application software is fully flexible thanks to the SICK AppSpace development environment, with image processing powered by HALCON and SICK Algorithm Library.

At a glance
  • 2D vision sensor with 1.7 megapixels
  • Configuration of SensorApps in a web browser
  • Programming of new SensorApps in SICK AppStudio
  • Flexible C-mount lenses and integrated illumination
  • Laser alignment aid, beeper and feedback spot
  • Includes HALCON runtime license and SICK Algorithm Library
Features
  • Flexible optical design and high-power lighting enable high-speed and long-distance setups
  • Easy start for anyone with the pre-installed Quality Inspection SensorApp
  • Fast, high-resolution programmable 2D cameras ensure maximum performance
  • Unique operator interaction possibilities thanks to powerful set of convenience features
  • Addition or extension of tool functionality for customized solutions with SICK Nova
  • Exceptional programming flexibility in SICK AppSpace or HALCON
  • Deep learning available as licensed option

1 - 1 of 1 Part Numbers
1082302
1082302
SICK 2D Machine Vision, SICK AppSpace Programmable Devices, InspectorP64x
  • Products by tasks: Presence inspection, quality inspection, measuring, 2D, positioning
  • Internal lighting: To be ordered separately as accessories
  • Lens: To be ordered separately as accessories, C-mount
  • Sensor resolution: 1,600 px x 1,088 px (1.7 Mpixel)
  • Sensor: CMOS matrix sensor, grayscale values
  • Optical focus: Adjustable focus
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Enclosure Rating

  • IP65

Sensor

  • CMOS Matrix Sensor, Grayscale Values

Sensor Resolution

  • 1,600 x 1,088 pixels (1.7 Mpixel)

Light Source

  • Adjustment Aid: Laser, Visible, Red, 630 to 680 nm
  • Internal Lighting: to be Ordered Separately as Accessories

Optical Focus

  • Adjustable Focus

Lens

  • C-mount

Optical Format

  • 2/3"

Operator Interface

  • Web Server

Control Element

  • 2 Buttons

Communication Interface

  • CAN, SICK CAN Sensor Network (Optional via External Connection Module CDF600-2)
  • Ethernet, TCP/IP, FTP, HTTP
  • Serial, RS-232, RS-422

Configuration Software

  • SICK AppStudio

Dimensions

  • 142 mm x 90 mm x 46 mm

  • Robot picking
  • Precise part positioning
  • Quality inspection of shapes and dimensions
  • Defect and part presence detection
  • Calibrated, high-accuracy measurements
  • Track and trace by code reading and OCR
  • Object sorting

Documentation

Data Sheets

Product Manuals

Brochure
