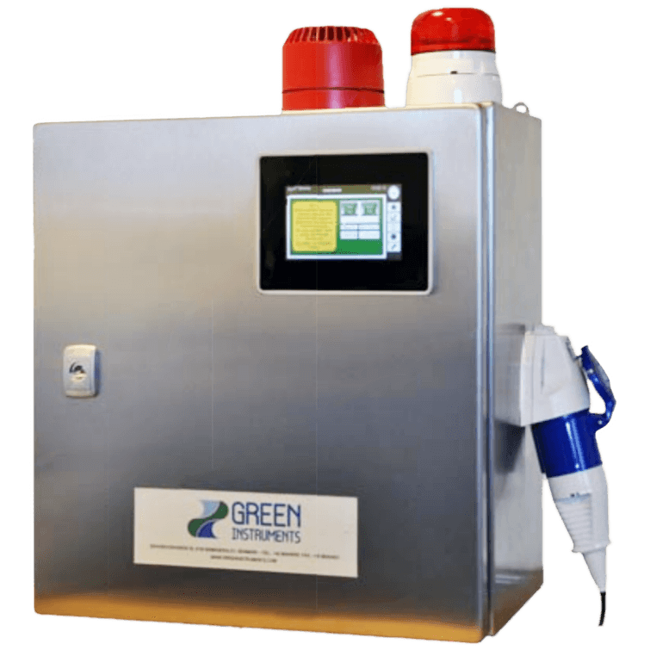

G2100 Combustible Dust Monitor
Brand: Green Instruments A/SThe G2100 Combustible Dust Monitor is designed to monitor dust concentration in cargo hull spaces. The system provides alarms when detecting the predetermined dust concentrations. This means that you will be able to react in time avoiding the occurrence of the explosion factors.
Specifications
Brand
Accuracy
- Better than 2 % of Full Scale
Alarm
- Audible Alarm: 100 dB(A) Sounder, Activated at High-High Dust Level, on Screen Deactivating
- Visual Alarm: Xenon Red Flash Lens, as Pre-Alarm, Activated at High Dust Level
Ambient Temperature Range
- 0° to 40° C (32° to 104° F)
Cable Length
- Umbilical Cord: Max.
Cable Material
- Optic Fibers: Plastic Fiber
Communication
- Data Communication: Via LAN Connection in Panel Bottom
Delay Time
- Alarm Delay: Default 5 seconds (Programmable 0 to 300 seconds)
Display
- Operating Display: Touch Screen 95.4 x 53.9 mm
Distance
- Scanning Distance: 6.56 feet (2 m)
- Scanning Distance: down to 3.28 feet (1 m)
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP54
Measuring Range
- 0 to 100 % Opacity / 0 to 100 G/m³ or 0 / 2.303 Extinction Coefficient
Power Supply
- 115-230 Vac at 50/60 Hz, 140 VA, Max.
- 24 Vdc
Relay Output
- Relay Function - 2 Relays: 230 Vac at 5 A
- Relay Function - 2 Relays: 30 Vdc at 1 A
Sensor, Probe Length
- Probe (Umbilical Cord): Max.
Sensor, Probe Material
- Probe (Optic Fibers): Plastic Fiber
- Probe: AISI 304 Stainless Steel
- Probe: Aluminum
