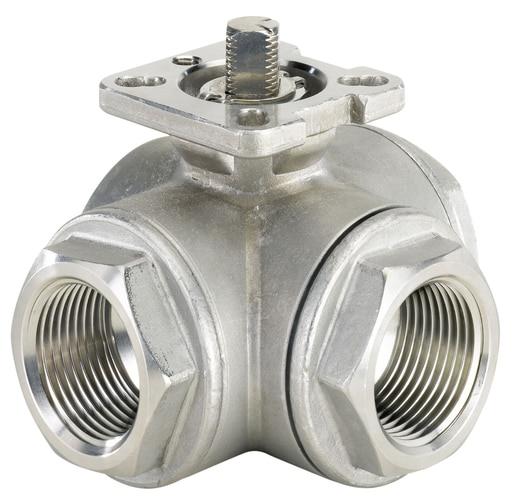

Type TKU002 3-Way Ball Valve with L-Bore
Brand: Burkert Fluid Control Systems3-Way Ball Valve with L-bore in stainless steel. The ball valves have got a manual lever. However, they can be connected via the mechanical interface to ISO 5211 with a pneumatic (e.g. type 2051 or type 2052) or electrical rotary actuators (e.g. types 3003, 3004 or 3005), too.
Features- Low torques
- Long lifespan
- Maintenance friendly
- High flow rate
Specifications
Port Connection
- 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Temperature Range
- -10° to 200° C
Body Material
- Stainless Steel 1.4401
Ball /Lever Material
- Stainless Steel 1.4401
Seal Material
- PTFE
O-Ring
- FKM
Pressure
- PN 63
