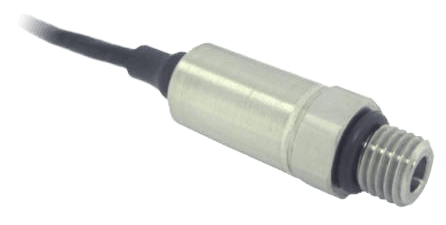

EB100 Miniature Pressure Transducer
Brand: American Sensor Technologies IncThe EB100 sets a new price/performance standard for demanding commercial and heavy industrial applications where high accuracy, small size and low weight are desirable.
This series is suitable for measurement of liquid or gas pressure, including difficult media such as contaminated water, steam, and mildly corrosive fluids. The 100% stainless steel media isolation covers all but the most corrosive environments, offering excellent durability. Custom OEM designs are available including various ports and output options.
Features- Miniature Design and Light Weight
- ±1% Total Error Band
- Available male threads such as : M5x0.8,10-32 UNF, M8x1, 5/16-24 UNF
Specifications
Applications
- Automotive Test Stands
- Hydraulic/Pneumatic Systems
- Military/Aerospace Test Stands
- Motor Sport: Oil, Coolant, Fuel, Brake Systems
Approvals & Certifications
- CE
- IEC 55022 Emissions Class A & B
- IEC 61000-4-2 Electrostatic Discharge Immunity
- IEC 61000-4-3 EM Field Immunity
- IEC 61000-4-4 Electrical Fast Transient Immunity
- IEC 61000-4-6 Conducted Immunity
Bandwidth
- (-3 dB) to 120 Hz
Compensated Temperature
- -20° to 125° C (-4° to 257° F)
Diaphragm Material
- Stainless Steel
Electrical Connectors
- Shielded Cable
Environmental Protection
- IP66
Frequency
- 20 to 200 Hz
Hysteresis
- ± 0.25 % of Full Scale
Linearization
- ± 0.25 % of Full Scale
Load Impedance
- 50 MΩ at 50 Vdc - Isolation Resistance
Materials of Construction
- 316 Stainless Steel
Media
- Fluids Compatible with 17-4 PH, 316 Stainless Steel & FKM Fluoroelastomer
Metric Connection
- M10 x 1 Male
- M5 x 0.8 Male
- M8 x 1 Male
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.5 - 4.5 V - Amplified Output
Pressure Cycles
- 1 Million
Pressure Range
- bar: 20 to 350
- kPa: 2,068 to 34,473.79
- psi: 300 to 5,000
Pressure Type
- Absolute
Repeatability
- ± 0.25 % of Full Scale
Shock
- 50 G
Storage Temperature
- -40° to 125° C (-40° to 257° F)
Supply Voltage
- 0.5 - 4.5 V
- 8-30 V
Thread
- M5 x 0.8
- M8 x 1
UNF/UNC Connection
- 10-32 UNF Male
- 3/8-24 UNF Male
- 5/16-24 UNF Male
Vibration
- 20 G
- Motor Sport: Oil, Coolant, Fuel, Brake Systems
- Hydraulic/Pneumatic Systems
- Automotive Test Stands
- Military/Aerospace Test Stands
