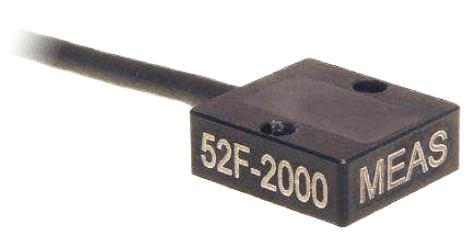

52F Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 52F Accelerometer has an advanced piezoresistive MEMS sensing element which offers excellent dynamic range and stability.
This unit features a full bridge output with an operating temperature range from -40 to +90° C. A slight amount of gas damping provides outstanding shock survivability and a flat amplitude response to 7 kHz.
Features- 2-10 Vdc Excitation
- Measures Static Acceleration
- ±5,000g Shock Protection
- Transverse Sensitivity <3%
- Weight <1.0 grams
- 26 kHz Resonant Frequency
- Linearity ±1%
Specifications
Accuracy
- ± 1.0 % of Full Scale - Non-Linearity
Applications
- Automotive Crash Testing
- Biomechanical Studies
- Blast Testing
- High Impact Research
Approvals & Certifications
- CE
- RoHS
Cable Length
- 30 ft (9.14 m)
Cable Material
- PFA Insulated
Electrical Connectors
- 4 x #32 AWG
Environmental Protection
- IP65
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 6,000 Hz
- 4,000 to 26,000 Hz - Resonant Frequency
Insulation Resistance
- > 100 MΩ at 100 Vdc
Mounting
- Socket Head Cap Screws
NACE & NIST
- NIST
Operating Temperature
- -40° to 90° C (-40° to 194° F)
Output
- < ± 50 mV - Zero Acceleration Output
Resistance
- 2,400 to 6,000 ohms - Input Resistance
- 2,400 to 6,000 ohms - Output Resistance
Seat / Seal Material
- Epoxy Sealed
Sensitivity
- < 3 % - Transverse Sensitivity
- 0.15 to 2 mV/g
- -0.20 ± 0.05 %/°C (-0.11 ± 0.03) - Thermal Sensitivity Shift
Shock
- 5,000 G
Storage Temperature
- -40° to 90° C (-40° to 194° F)
Thermal Drift
- ± 0.05 % of Full Scale/°C - Thermal Zero Shift
