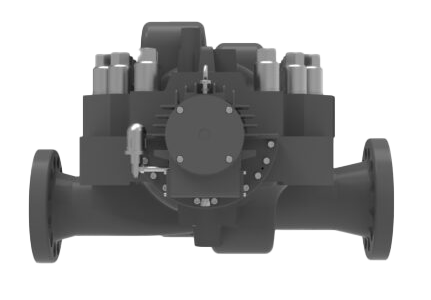

AHP & AHP-DS BB3 Type API 610 Centrifugal Pump
Brand: Trillium Flow Technologies™ Floway®
This Gabbioneta Pumps® series offers reliable operation and easy internal inspection and maintenance while reducing axial and radial loads.
The AHP and AHP-DS range Gabbioneta Pumps® are heavy-duty process multistage horizontal, between bearings, volute type pumps, with axial split casing that allows easy internal inspection and maintenance, and single or double entry first stage impeller. An opposed impeller configuration allows minimal axial thrust.
Features- De-staged construction
- Replaceable stuffing box cooling or heating jackets
- Double shaft extension
- Cylindrical fit at coupling shaft end
- Special bearing isolators at both bearing housing ends
- ‘CARB’ or hydrodynamic line bearing for high temperature application
- Oil mist lubrication system (pure or purge)
- Forced feed lubrication system
- Temperature and/or vibration detection and monitoring equipment
- Baseplate available with three point gimbal mounting (FPSO services)
Specifications
Capacity
- up to 2000 m3/h
Head
- Up to 2800 m
Temperature Range
- -30° to 200° C
- -20° to 400° F
Design Working Pressure
- Up to 210 barg
- 3000 psig
Rotational Speed
- Up to 5000 rpm
- Oil & Gas
- Fluid transportation
- Refineries
- Petrochemical plants
- Boiler feedwater and
- Power plant auxiliaries
- Water injection
- Reverse osmosis
