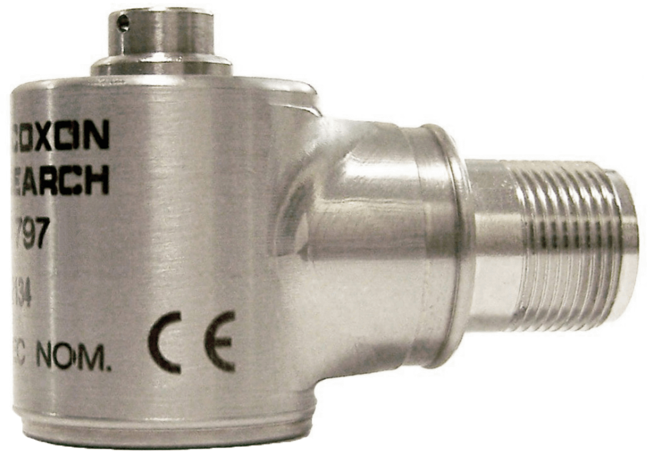

Model 797 Premium PiezoFET Low Profile IsoRing Accelerometer
Brand: Wilcoxon Sensing TechnologiesFeatures:
- Rugged design
- Corrosion resistant
- Hermetically sealed
- Ground isolated
- ESD protection
- Reverse wiring protection
- Mounts in any orientation
Specifications
Approvals & Certifications
- ATEX Ex
- CE
- CSA (C,US)
- FM
- SIMTARS
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cable (J10 / J9T2A)
- Mating Connector: R6 Typical
- Output Connector: 2-Pin, MIL-C-5015 Style
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- Corrosion-Proof
Frequency
- Frequency Response (± 10 %): 2 to 7,000 Hz
- Frequency Response (± 3 dB): 1 to 12,000 Hz
- Frequency Response (± 5 %): 3 to 5,000 Hz
- Resonance Frequency: 26 kHz
Mounting
- 1/4-28 Captive Socket Head Screw
Mounting Position
- Any Orientation
Noise
- Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 600 µg
- Electrical Noise, Equivalent G (Spectral: 10 Hz): 8.0 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 100 to 1,000 Hz): 5 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range, Vdc > 25 V: 80 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Max.
- Sensitivity, ± 5 %, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage: 12 Vdc
