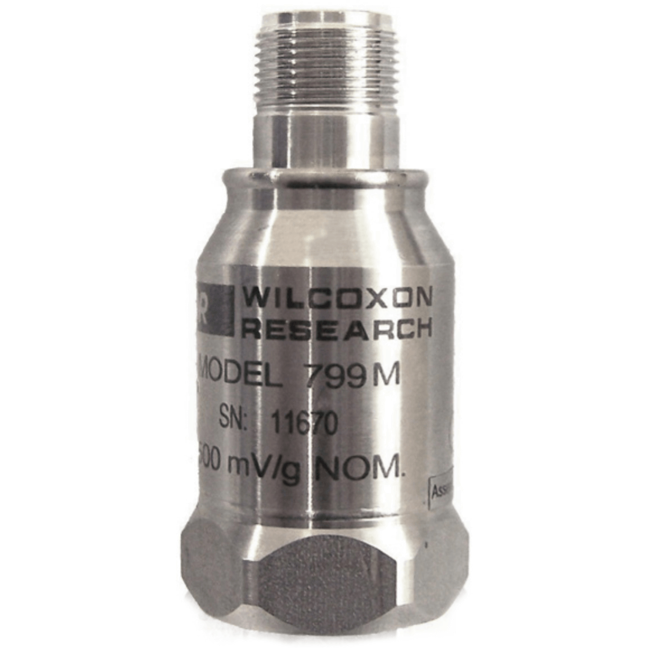

Model 799M Premium High Sensitivity Filtered Accelerometer
Brand: Wilcoxon Sensing TechnologiesTop exit, premium, 0.2 Hz low frequency, high sensitivity, filtered, MIL-C-5015 connector, 1,000 mV/g, ±5% sensitivity tolerance.
Features- High sensitivity
- Ultra low-noise electronics for clear signals at very low vibration levels
- Opimized for 15 V supply
- Low pass filtered to eliminate high frequencies
- Hermetically sealed
- ESD protection
- Reverse wiring protection
Specifications
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Mating Connector: R6 Typical
- Output Connector: 2-Pin, MIL-5015 Style
Element
- Sensing Element Design: PZT, Shear
Enclosure, Body Material
- 316L Stainless Steel
Frequency
- Frequency Response (± 10 %): 0.4 to 1,600 Hz
- Frequency Response (± 3 dB): 0.2 to 2,500 Hz
- Frequency Response (± 5 %): 0.6 to 1,200 Hz
- Resonance Frequency: 18 kHz
Mounting
- 1/4-28 Tapped Hole
Noise
- Electrical Noise, Equivalent G (Spectral: 0.1 Hz): 15 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 1 Hz): 3.0 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 10, 100 Hz): 1 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 400 Ω
Power Requirement
- 15-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 5 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Max.
- Electromagnetic Sensitivity, Equivalent G: 150 µg/Gauss
- Sensitivity, ± 5 %, 25° C (77° F): 1,000 mV/g
- Transverse Sensitivity: Max. 5 % of Axial
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 80° C (-58° to 176° F)
Vibration
- Vibration Limit: 250 G Peak
Voltage
- Bias Output Voltage: 8 Vdc
