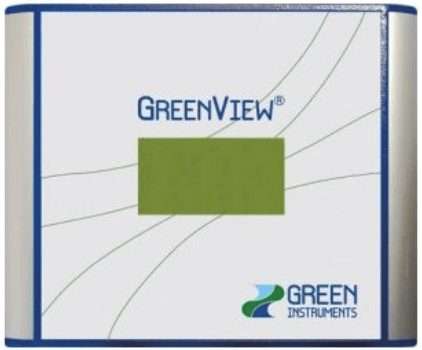

G36a/p Oxygen Analyzer
Brand: Green Instruments A/SGreen Instruments has produced oxygen analyzers for marine applications since 2003. The first generation, the G3500 Oxygen Analyzer family, satisfied the requirements of fleet managers, service experts, and manufacturers of inert gas systems all over the world - now the new G36 family is succeeding and extending the service to customers.
The new G36 analyzers provide extra advantages such as interface via touch screen, galvanically separated and stronger Analog signal, new improved sensor, trend graph display, data logging, and optional pressure compensation. The new generation of oxygen analyzers are approved under the European Marine Directive, becoming the first system to be certified under the new MED heading A 1/3.54 for fixed oxygen analyzers.
Specifications
Brand
Accuracy
- ± 0.5 % of the Measurement Range
Ambient Temperature Range
- 0° to 70° C (32° to 158° F) - G36p
- -15° to 55° C (5° to 131° F) - G36a
Applications
- Biomass Heating Plants
- Boilers
- Generators
- Inert Gas Generators (with Dedicated Burner)
- Inert Gas Systems (Based on Boiler Flue Gas)
- Nitrogen Generators
Approvals & Certifications
- BV
- CE
- DNV
- LLOYD
- MED
Display
- Interface: Touch Screen 71 x 39 mm with Trend Graph Display
Environmental Protection
- IP55
- IP67
Load Resistance
- 600 ohms / 24 Vdc, Max.
Measuring Range
- 0 to 21 % O₂
Mounting
- Panel Mounted - G36p
Output
- Output Signal: 2 x 4-20 mA - Range Selectable, Default - A-Out1: 0 to 25 % O₂ / A-Out2 Not in Use
Power Supply
- 100-230 Vac at 50/60 Hz - G36a
- 24 Vdc - G36p
Relay Output
- Alarm Relays: 4 Relays used for Different Functions, Volt Free, 24 Vac/dc, 5 A
Repeatability
- ± 0.1 % of the Measurement Range
Response Time
- 90 % of Full Scale in less than 45 seconds
Sensor, Probe Type
- Sensor: Heated Zirconia - Both SEN 1 Plug-In Typical & SEN 9 Screw-in Typical
