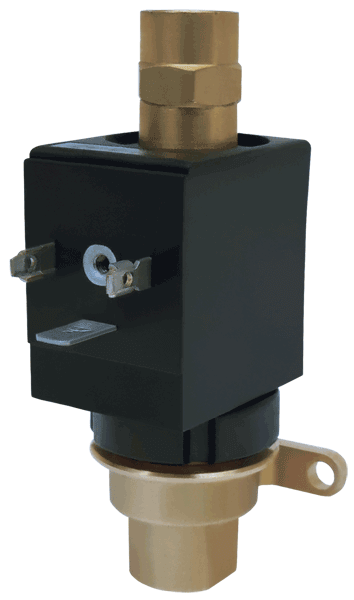

Direct Acting Solenoid Valves Series 6100

The Spartan Scientific Series 6100 is a 2-Way, 2-Position direct acting In-Line style solenoid valve utilizing a long-life spring compensated

solenoid poppet at the heart of an all stainless steel solenoid operator.

The standard body material is brass and is available in 1/8” and 1/4” NPT.

With orifice sizes ranging from 0.8mm up to 3.0mm standard, the 6100 valve can handle a wide variety of flow rates as well as pressure ranges from 0 to 600PSI in various versions.

The Series 6100 employs use of the orifice basket design unique to Spartan Scientific valves which allows for quick change-over for production of any orifice size as standard.

This aids in versatility of valve manufacture and increases valve availability.

The brass valve body is of robust design and is compatible with liquids and gases at lowest possible cost.

All common voltages are offered as well as electrical connection styles which include a DIN Style “A” EN175301-803 - Formerly DIN 43650

spaded coil as well as flying lead styles.

Coils are sealed to IP 65.
