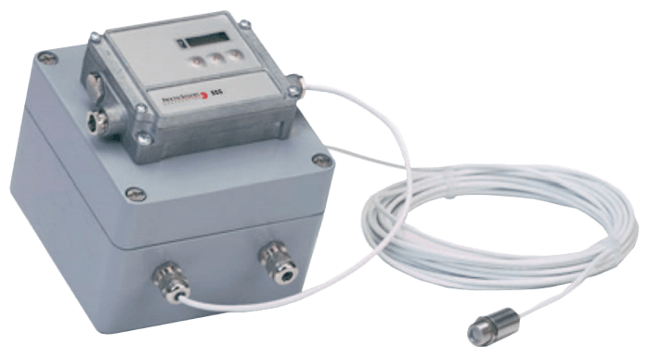

PSC-SSS-EX Infrared Temperature Sensor
Brand: Process Sensors CorporationIntrinsically safe non-contact infrared sensor system for use in hazardous locations.
Features- Sensing head as simple electrical device enables installations in hazardous locations without problems
- Energy limitation with appropriate zener barriers (STAHL) with approval for zone 1 (PTB 01 ATEX 2053/ E II (1/2) G [EEx ia/ib] IIC/IIB)
- PSC SSS sensing heads are defined as simple electrical devices (according to EN 50014)
- No special approval for intrinsic safety necessary
- PSC SSS gets intrinsically safe by limitation of the energy with two double zener barriers, type 9002/22-032-300-111
- Aluminum housing with mounting appliance for two zener barriers and SSS electronics
- Pre-assembled cable for SSS electronics
- CD with software tool for calibrating the barrier resistance into the head code
Specifications
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
Approvals & Certifications
- ATEX 2053/E II (1/2) G [EEx ia/ib] IIC/IIB)
- Canada: CSA 1284580 (LR 43394)
- Europe (CENELEC) for Zone 1: E II (1/2) G [EEx ia/ib] IIC/IIB, for Zone 2: E II 3 G EEx NA II T4
- Europe (CENELEC) Zone 1: PTB 01-ATEX-2053, Zone 2: PTB 01-ATEX-2054
- USA: FM Approval 3010778
Cable Length
- 9.84 to 49.21 ft (3 to 15 m) - max.
Electrical Connectors
- Shielded Cable
Enclosure, Body Material
- Aluminum
Environmental Protection
- Hazardous Area
- Intrinsically Safe
- IP20
- IP40
Mounting
- Rail Mounting
Sensor, Probe Type
- Pt1000
Temperature Range
- -40° to 600° C (-40° to 1,112° F) for Field of View
- -40° to 900° C (-40° to 1,652° F) for Field of View 22: 1
