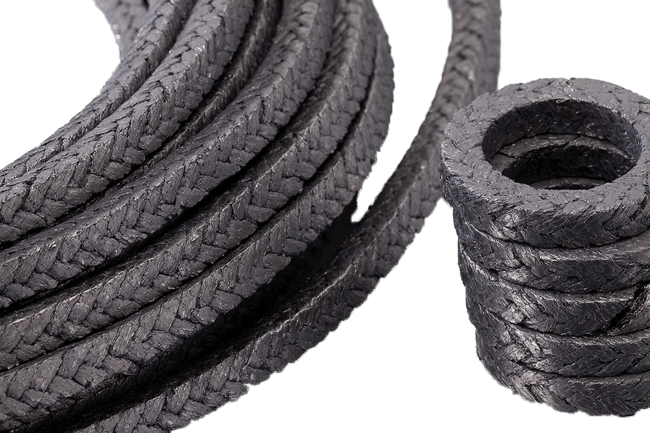

LATTYgraf 6995 NG Braided Expanded Graphite Packing for Industrial Valves and Fittings
Brand: Latty International S.A.Packing made from high-purity expanded graphite yarns (>99.5%) coated with Inconel wire, impregnated with a high-purity graphite mix (>99.5%) and incorporating an additional agent to improve friction coefficient.
LATTYgraf 6995 NG contains an inhibitor developed from an exclusive process to provide unlimited protection of the stem, stuffing box housing and stuffing box from corrosion over time.
Available in preformed packing rings, on request. Very high-performance, low-friction, very-pure expanded graphite packing. Extremely resistant to very high pressures.
Limitations: precautions to be observed when used in oxidizing environments.
Features- Specially designed for specific requirements of industrial valves and fittings
- Very high chemical resistance
- Very high-purity
- High resistance to significant temperature or pressure variations
- The corrosion inhibitor (exclusive LATTY process) durably protects the parts of the fitting
- Ready-to-use preformed rings: quick stuffing box implementation and replacement, reduced production downtime
- Reduced maintenance costs and increased equipment service life
- Multi-purpose: suitable for a large number of applications
- Made in France
Specifications
Brand
Pressure
- 0 to 400 bar
- 0 to 40 MPa
- 0 to 5801 psi
Temperature
- -200° to 600° C
- -328° to 1112° F
Speed
- < 1 m/s
pH
- 0 to 14
Approvals & Certifications
- ISO 15848 -1
- Classe BH
- BAM
Fluids
- For All Fluids
Material
- Fugitive Emission Valves and Fittings
- Refineries
- Heat Transfer Fluids
- Energy Production and All High-Temperature Fluids
Composition
- Carbon-Graphite
- Fittings
- Chemical industry
- Petrochemical industry
- Energy production
- Refineries
