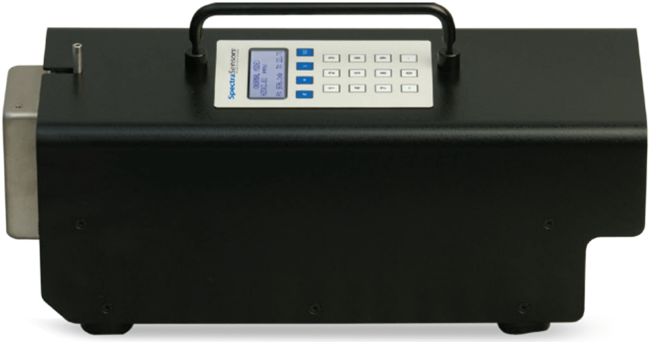

SS1000 Single Channel H2O Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS1000 Portable is a light weight, easy to handle, battery-powered H₂O analyzer, used to verify measurements and for spot-checking when other methods provide questionable results.
In natural gas pipeline applications, poor quality measurement results are extremely costly. Additional processing or dehydration costs, upset conditions, shut-ins and inconsistent process results may be caused by sensors that do not perform properly.
The SS1000 reveals poorly performing sensors, pinpoints high moisture and can be used as a standard for measurement validation.
Features- Virtually maintenance free
- No interference from glycol, methanol or amine contaminants (vapor phase)
- Fast and accurate real-time measurements
- No wet-up or dry-down delays
- Short term payback; no consumables
- NIST-traceable calibration
Specifications
Brand
Communication
- RS-232C
Current
- 0.5 A, Max.
Display
- LCD Display
Enclosure, Body Material
- 316L Polished Stainless Steel
NACE & NIST
- NIST
Power Supply
- 100-240 Vac, 50/60 Hz
Temperature Range
- -20° to 50° C (-4° to 122° F)
