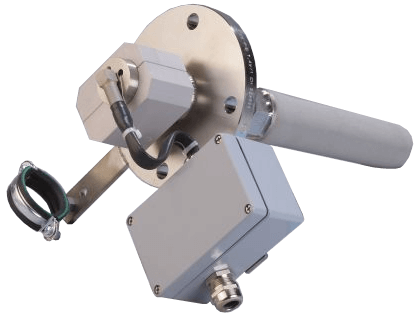

SP10 & SP10-H Gas Sample Probe
Brand: M&C TechGroup Germany GmbHThe M&C gas sample probe, Version SP10, are to be installed for continuous sampling of high dust loaded gases, large flow sampling, as well as for general gas sampling.
Due to its compact design, it requires only limited space. It is to be mounted in a weather-proof location.
Features- Sampling of dusty process gases
- Fast response time
- Easy mounting and maintenance
- Electrically heated with integrated thermostat unit
- Various materials and lengths for extension tubes and filters
- Many optional configurations are available
Specifications
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
Approvals & Certifications
- EN 60529
Electrical Connectors
- 1 x PG 13.5 Cable Gland
- Electrical Equipment Standard: EN 61010, EN 60519-1
- Terminals, Max.
Environmental Protection
- IP54
Filter
- V10, Filter Porosity 2 micron, Stainless Steel 316 - Ø 46 mm x 225 mm
Flange Material
- Mounting Flange: 316Ti Stainless Steel
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - PN 6
Flow Rate
- ∆P at Flow of: 100 to 2,000 NL/hr
Length
- Extension Tube Length: 0 to 6.56 feet (0 to 2 m)
Materials of Construction
- Extension Tube & Filter: Hastelloy
- Sample Contacting Parts & Filter: 316 Stainless Steel
- Sample Contacting Parts, Extension Tube: 316Ti Stainless Steel
Mounting
- Flange Mount
NPT Connection
- Sample Gas Outlet Connection: 1/8" NPT Internal
Power Supply
- 115 V / 60 Hz, 300 W
- 230 V / 50 Hz, 315 W
- 240 V / 60 Hz, 315 W
Pressure Range
- ∆P Pressure Loss with New Filter Element: < psi: 0.014 to 0.580 (kPa: 0.1 to 4, Mbar: 1 to 40)
Sensor, Probe Length
- Insitu Probe Length: 10.62" (270 mm)
- Insitu Probe Length: Extension Tube 0" to 78.74" (0 to 2,000 mm)
Sensor, Probe Type
- Pt100
Temperature Range
- Heater Temperature Adjustable: -100° to 200° C (-148° to 392° F)
- Sample Temperature: Max.
