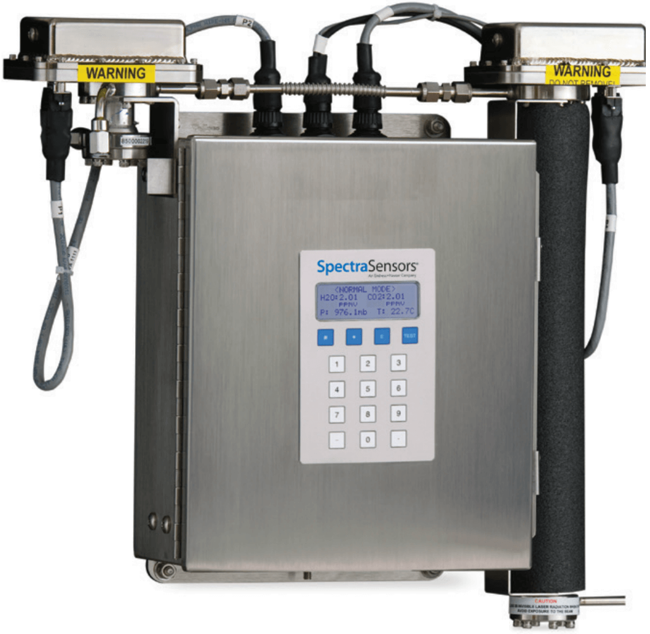

SS3000 Dual Channel H2O/CO₂ Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS3300 Dual Channel Gas Analyzer is capable of measuring moisture and carbon dioxide in this cost effective dual channel system which enhances savings by incorporating two sensors in one.
Features- Virtually maintenance free
- No interference from glycol, methanol or amine contaminants (vapor phase)
- Accurate, real-time measurements
- No wet-up or dry-down delays
- Reliable in harsh environments
- Short term payback; no consumables
- NIST-traceable calibration
- Analog and serial outputs for remote monitoring
- CSA Certification
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups A, B, C, D, T3C
Communication
- Modbus Gould RTU or Daniel RTU or ASCII
- RS-232C
Current
- 1 A, Max.
- 1.6 A, Max.
- 3.2 A, Max.
Display
- LCD Display
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP14
- NEMA 3R
Input
- 100-240 Vac, 50/60 Hz
- 18-32 Vdc Optional
- 9-16 Vdc
Materials of Construction
- Sample Cell: 316L Series Polished Stainless Steel
NACE & NIST
- NIST
Temperature Range
- -20° to 50° C (-4° to 122° F)
