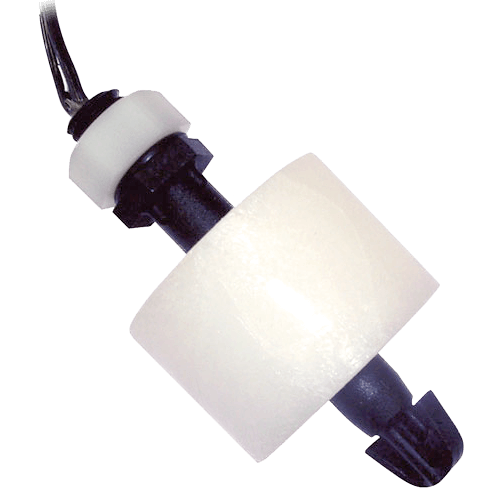

VCS-02 Liquid Level Switch
Brand: American Sensor Technologies IncThe VCS-02 liquid level switch features an overall length less than 60 mm and can be used for high or low level sensing.
Features- Overall Length Less than 60 mm
- Internal Fit
- 30 mm Diameter Float
- Polypropylene Material
- High or Low Level Sensing
- Normally Closed or Normally Open by Float Reversal
- Reed Switch Reliability (UL File E153493)
- Exposed Magnet
- Interface Option Available
Specifications
Cable Length
- 0.656 ft (0.2 m)
Cable Material
- PVC Insulated
Cable Type
- Insulated Cable
Electrical Connectors
- 22 AWG 16 / 0.2 mm Stripped Cable
Electrical Contacts
- Reed Contact
Electrical Rating
- 200 Vdc / 250 Vac / 1 A / 30 W
Enclosure Finish
- Black
Enclosure, Body Material
- Foamed Polypropylene (Black)
Environmental Protection
- IP65
Fluid Specific Gravity
- 0.64 - Float SG
Materials of Construction
- Foamed Polypropylene (White) - Float
- Ruthenium - Contact
Maximum System Pressure
- psi: 18.85 (kPa: 130, bar: 1.3)
Media
- Water
Metric Connection
- M8 x 1.25 mm
Mounting
- Bottom Mounting
- Internal Fit
- Top Mounting
Operating Temperature
- -30° to 70° C (-22° to 158° F)
Sensor, Probe Diameter
- 1.18" (30 mm)
Sensor, Probe Style
- Float
Shock
- 30 G, 3 Half-sine Pulses of 11 ms
Switch Type
- SPST
Vibration
- 35 G at 500 Hz
- Water High or Low Level
- Condensate Level Alarm
- Chemical High or Low Level
- Cooling Systems
- Coolant Level Indication
