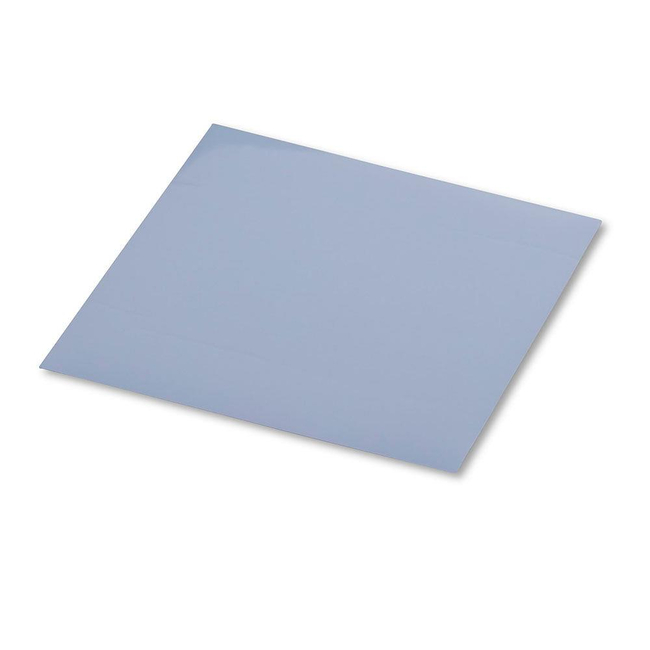

THERM-A-GAP 974 High Thermal Conductivity Gap Filler Pads
Brand: ChomericsParker Chomerics THERM-A-GAP™ 974 Thermally Conductive Gap Filler Pads provide a low hardness (40 Shore A) solution with 6.0 W/m-K of thermal conductivity.
THERM-A-GAP™ 974 provides excellent thermal conductivity and is supplied on an acrylic Pressure Sensitive Adhesive (PSA) for improved application.
THERM-A-GAP™ 97X series gap fillers offer the highest thermal conductivity for low to moderate clamping force applications.
Features- 6.0 W/m-K thermal conductivity
- Fully RoHS compliant
- Supplied with Pressure Sensitive Adhesive for ease of use
Specifications
Brand
Coefficient of Thermal Expansion
- 100 ppm/K
Color
- Blue
Deflection at Pressure
- 13
Dielectric Constant
- 3.2 @ 1 MHz
Dielectric Strength
- 200 Vac/mil
Dissipation Factor
- < 0.001 @ 1 MHz
Durometer
- 40
Heat Capacity
- 0.9 J/g-K
Operating Temperature
- -55° to 200° C
Outgassing Total Mass Loss
- 0.59 (0.18) %
Shape
- Flat Sheets
Shelf Life
- 12 Months
Specifications Met
- RoHS
Thermal Conductivity
- 6 watt/m-K
Thermal Impedance
- 2.9° C-Cm²/W
Volume Resistivity (Ohm-Cm)
- 10^14 Ω-Cm
