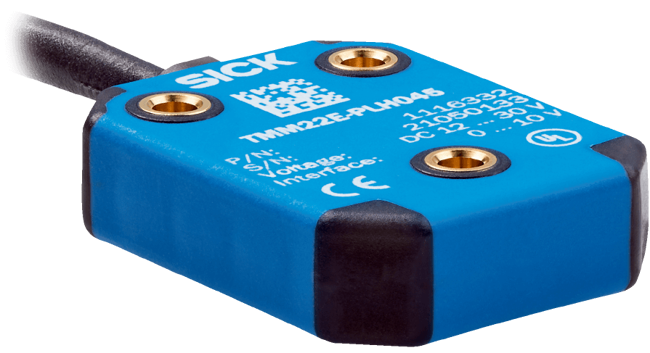

TMS/TMM22 Inclination Sensor

Brand: Sick AG
Add Product to My Catalog

The TMS22 (single-axis) and TMM22 (dual-axis) inclination sensors provide cost-effective, high-precision inclination measurements. The foundation for this is powerful MEMS technology, which scores points with a error tolerance of ± 0.25° and excellent repeatability.

The measured values are output via a linearized analog signal. In order to meet the highest requirements in terms of resistance for outdoor applications such as PV systems, the sensor electronics are embedded directly into the housing during injection molding.

Therefore, TMS/TMM22 devices comply with the regulations according to enclosure rating IP66, IP68 or IP69K. The compact design with a height of just 10,4 mm also makes nearly unlimited integration options possible.
Features
  • Precise one- or two-dimensional inclination measurement for cost-sensitive applications
  • Maximum reliability thanks to rugged sensor design with dust- and waterproof enclosed electronics
  • High measuring certainty throughout the entire measuring range even under demanding ambient conditions thanks to optimized interference suppression
  • Can be easily integrated into a wide range of applications thanks to the compact dimensions
  • Analog output signal ensures maximum compatibility in industrial environments
  • Constant status information of the sensor thanks to visual LED feedback

Specifications

Brand

Certifications & Approvals

  • CE
  • cULus Listed

Enclosure Rating

  • IP66
  • IP69K
  • IP68

Number of Axis

  • 1 / 2

Communication Interface

  • Analog, 0-10 V
  • Analog, 4-20 mA
  • Analog, 0-5 V

Measurement Range

  • 2-Dimensional ± 10° to ± 90°
  • 1-Dimensional 80° to 360°

Housing Material

  • Plastic (PA12), Glass-fiber Reinforced

Connection Type

  • Cable, 5-Wire, 1.5 m
  • Cable, 5-Wire, 0.3 m
  • Cable, 5-Wire, 10 m
  • Cable, 5-Wire, 3 m
  • Cable, 5-Wire, with Male Connector, M12, 5-Pin, 1 m / 0.3 m / 5 m
  • Cable, 5-Wire, 5 m

Accuracy

  • ± 0.25°

  • Photovoltaics And Solar Thermal Energy
  • Mobile Agricultural And Forestry Machinery
  • Vertical Storage Systems
  • Crane And Lifting Technology
  • Automated Guided Vehicle Systems
  • Construction Machinery And Special-purpose Vehicles
  • Wind Power Plants
