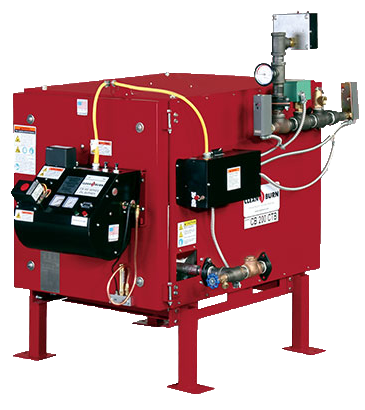

CTB-200 Waste Oil Boiler
Brand: Clean Burn, LLCThe Clean Burn Model CTB-200 waste oil boiler has an input rating of 200,000 BTU/hr and outputs 148,400 BTU/hr.
The CTB-200 is UL listed for use in central heating systems.
With CTB-200, you spend 30 minutes cleaning every 750 hours of operation. It is uniquely designed for installation flexibility.
Engineered for use as a single boiler unit, or it can be used in combination with any Clean Burn boiler to create a system perfectly sized for any facility.
Features- Three-pass Heat Exchanger Creates More Heat Efficiency
- Low-Mass Water Design Provides Quick Start-up
- Patented Burner Engineered Exclusively for Waste Oil
- System is Pre-wired, Ready for Installation
- Narrow Cabinet Designs Provide Installation Flexibility
- Unequalled Service And Support From Clean Burn Distributors
Specifications
Brand
BTU per Hour Input
- 200,000 / 58.6 kW
BTU per Hour Output
- 148,500 / 43.5 kW
Fuels
- Used oils: Crankcase,ATF, hydraulic
- Fuel oils: #2, #4, and #5 fuel oil
Heating Surface
- 39 sq. ft. / 3.6 sqM
Design Water Flow per Coil
- 15 gpm / 57 lpm
Cabinet Dimensions
- L x W x H
- 40″ x 29″ x 29.5″
- 101cm x 74cm x 75cm
Overall Dimensions with Burner/Breach/Plumbing
- L x W x H
- 59″ x 33.25″ x 37″
- 150cm x 84cm x 94cm
Approximate Weight
- 677 lbs. / 304.7 kg
Electrical Requirements
- 115 VAC 60 Hz single phase
- 230V/ 50Hz units also available
Maximum Oil Consumption
- 1.4 GPH / 5.3 lph
Stack Size
- 8″ / 20cm
Air Compressor Required
- 2.0 CFM at 25 PSI
- 3.4 m3/h at 1.7 bar
Recommended Clean-out
- 750 hours
