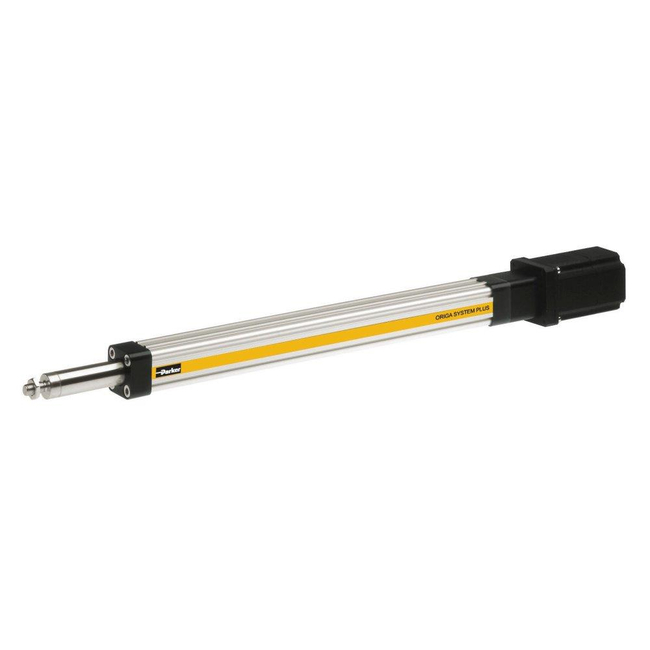

OSPE50-STR Trapezoidal Screw Driven Electric Cylinder/Linear Actuator with Piston Rod
Brand: Parker HannifinOffering thrust forces to 3300N, strokes to 0.5m and an ISO conforming piston rod end, the OSPE50-STR trapezoidal screw rod-style linear actuator is suitable for intermittent applications and offers self-locking plus excellent slow speed characteristics.
The OSPE50-STR trapezoidal lead screw driven electric linear rod type cylinder is suitable for intermittent duty applications and offers self-locking plus excellent slow speed characteristics provides a compact, cost effective solution ideal for applications on transfer handling operations within industrial, manufacturing and assembly environments.
Features- Lead screw driven rod actuator for smooth speed and economic positioning applications
- Self-locking lead screw for safe horizontal and vertical applications
- Piston rod end conforming ISO 15552 (6431 Pneumatics cylinders)
- Double row angular contact ball bearings for medium to high thrust load
- Strip seal offering IP54 protection
- Pre-configured motor and gearhead mounting kits for simplified installation
Specifications
Brand
Corrosion Resistant Option
- No
Drive Type
- Screw
IP Protection Rating
- IP54
Maximum Speed (inch/sec)
- 4.92
Maximum Speed (m/sec)
- 0.125
Maximum Stroke (inch)
- 19.68
Maximum Stroke (mm)
- 500
Maximum Thrust (Lbs)
- 741
Maximum Thrust (N)
- 3300
Operating Temperature (°C)
- -20° to +70° C
Operating Temperature (°F)
- -4° to +158° F
Position Repeatability (± Inch)
- 0.02
Position Repeatability (± mm)
- 0.5
Profile Width (mm)
- 87
Rod End Dimension
- ISO 50
Series
- OSP-E
- Pick and Place Applications
- Packaging, Labeling and Wrapping Systems
- Pusher, Picker and Gripper Applications
- Positioning
- Feeding
- Cutting
- Markets:
- Factory Automation
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Packaging Machinery
- Printing and Marking Equipment
- Vehicle Assembly Facilities
- Food & Beverage
