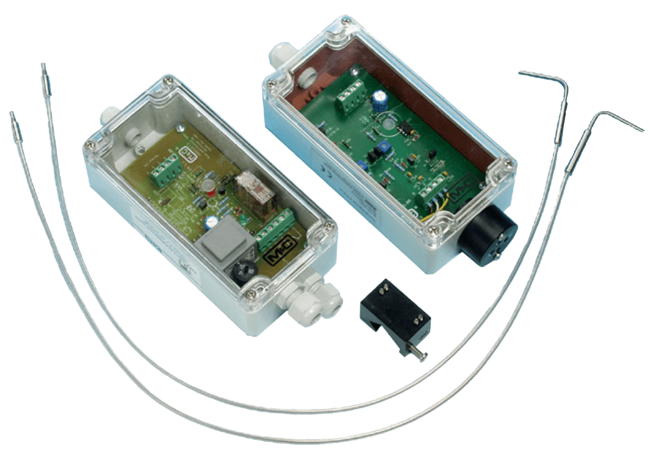

M&C Techgroup Optical Flow Monitoring Unit, FA1-H

FA1-H Optical Flow Monitoring Unit

Brand: M&C TechGroup Germany GmbH
Add Product to My Catalog

The optical flow monitoring unit with light guides is used in gas analysis on heated flowmeters with temperatures less than 60°C (140°F).

The measuring cones must be transparent. Thanks to optical scanning, very low flow quantities can be recorded even in case of flowmeters with non-metallic or very small (1 mm (0.04")) floats.
Features
  • Easy mounting of the sensor head at the flow meter without dismounting the measuring glass
  • Also applicable for very low flow quantities
  • Also suitable for non-metallic or very small floating balls
  • Easy adjustment of any MIN alarm setpoint

Specifications

Brand

Approvals & Certifications

  • Electrical Standard: EN 61010

Cable Entry

  • Terminal Range 0.2" to 0.39" (5 to 10 mm) - Model Pre-Amplifier K-FA-H

Electrical Connectors

  • Terminals 2.5 mm² - Model Pre-Amplifier K-FA-H

Environmental Protection

  • IP65 EN 60529

Length

  • Light Guide Length: 23.62" to 47.24" (600 to 1,200 mm) - Model Light Guide FO1, FO2, FO3
  • Measuring Tube: 0.2" to 0.55" (5 to 14 mm)

Materials of Construction

  • 316Ti Stainless Steel - Model Light Guide FO1, FO2, FO3
  • Anodized Aluminum - Model Sensor Head FA1-H
  • Brass-Chromed - Model Light Guide FO1, FO2, FO3
  • Glass Fibre - Model Light Guide FO1, FO2, FO3
  • Polycarbonate - Model Pre-Amplifier K-FA-H

Mounting

  • Assembly: Fixed with Clamping Screw - Model Sensor Head FA1-H
  • Assembly: Wall Mounting - Model Pre-Amplifier K-FA-H

Operating Temperature

  • -25° to 180° C (-13° to 356° F) - Model Sensor Head FA1-H Light Guide FO1, FO2, FO3
  • -25° to 60° C (-13° to 140° F) - Model Pre-Amplifier K-FA-H

Power Supply

  • 115 V 50/60 Hz - Electronic Controller for K-FA-H Pre-Amplifier
  • 230 V 50/60 Hz - Electronic Controller for K-FA-H Pre-Amplifier
  • 24 Vac Electronic Controller for K-FA-H Pre-Amplifier

Storage Temperature

  • -25° to 70° C (-13° to 158° F)

Supply Voltage

  • 12 Vdc Internal from FA-1-H - Model Pre-Amplifier K-FA-H
