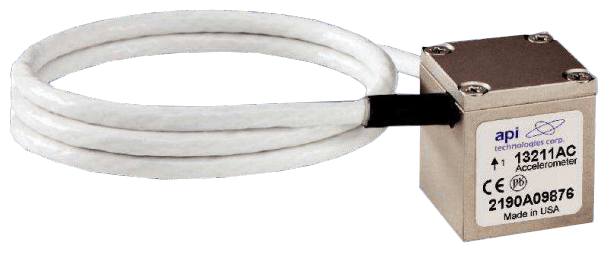

13211AC Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe 13211AC is an interchangeable and rugged uniaxial accelerometer capable of accurately measuring acceleration under demanding environmental conditions.
A tough, compact housing holds potted electronics and a shielded heavyweight cable. The 13211AC provides enhanced accuracy and durability features to meet the challenges of your application. In addition to its robust construction, increased precision is achieved through improved offset and gain compensation.
Each axial sensor has been tested over the -40° to 85° C temperature range and has a nominal full scale output swing of ±2 Volts. Sensors are available in various fixed sensitivities, each with a 2.500 V offset. The 13211AC can also be ordered with different bandwidths and wiring configurations.
Specifications
Accuracy
- ± 1.25 % of Full Scale Reading - Non-Linearity
- 0.2 % of Full Scale Reading - Non-Linearity
Approvals & Certifications
- CE
Cable Material
- Teflon
Circuit Protection
- EMI
Enclosure Finish
- Nickel
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
Frequency
- 0 to 2,500 Hz - Frequency Response
Input
- ± 80 V - Input Voltage Limits
- 12 mA - Input Current
- 8.5-36 V - Input Voltage - Operating
Materials of Construction
- Aluminum - Nickel-Plated
Mounting
- Mounting Holes
Output
- ± 2 Vdc - FSO Voltage
- 0.50-4.50 V - Output Voltage Swing
- 2,500 ± 30 mV - Zero Acceleration Output
Output Noise
- 110 µg/√Hz - Noise Density
Resistance
- 5 kΩ - Self Test Pull-Up Resistor
Sensitivity
- ± 1.5 % - Transverse Sensitivity
- 0.1 % of Full Scale Reading - Sensitivity Drift
- 2-4 V/g at 25° C
Shock
- ± 3,500 G
Temperature Range
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- 0.5 % of Full Scale Reading at 25° C - Offset Drift
Zero Offset
- 2.5 V - Offset at 25° C
