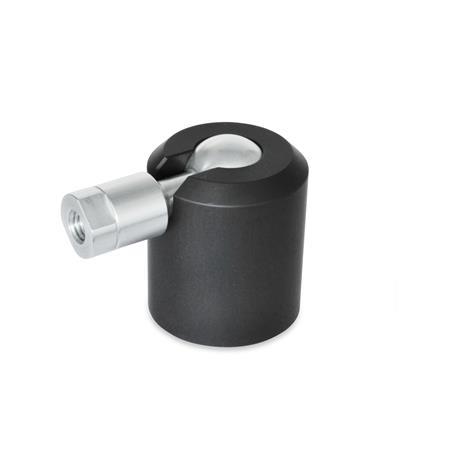

Otto Ganter Swivel Ball Joint Aluminum, GN 784

GN 784 Swivel Ball Joint Aluminum

Brand: Otto Ganter GmbH + Co. KG
Add Product to My Catalog

Information:
  • GN 784 swivel ball joints allow precise and variable adjustment of the ball pivot within the rotation range.
  • This is a particular advantage when adjusting scanners, cameras, lighting, monitors, etc.
  • Thanks to the efficient clamping mechanism, only small amounts of torque on the clamping screw result in comparatively strong clamping pressure on the ball.
  • This force is easily applied by the clamping lever (Identification no.1).
  • The ball joint can be mounted from below with the d 5 internal thread or together with the GN 784.1 flange, available as an accessory, using three through-holes from above.
  • For a permanent high stop torque, the contact surfaces of the balls must be kept free of grease.
  • Exceeding the recommended tightening torque increases the securing of the ball joint in its end position, but may result in increased wear and potential failure of the clamping mechanism.

    • Documentation

    Document
