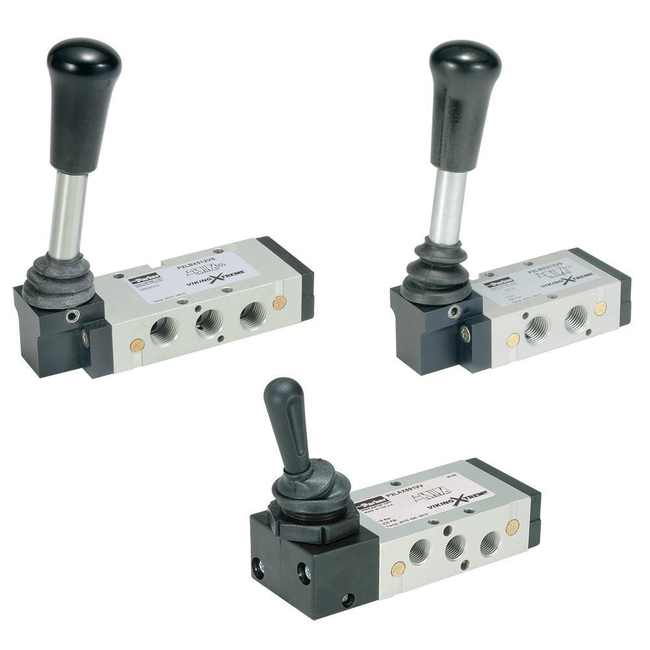

Pneumatic Manual Valve - Viking Xtreme Manual Series
Brand: Parker HannifinThe Viking Xtreme manual valve is a robust, versatile inline valve that is well suited for general to harsh industrial and mobile related applications.
Stainless steel handles are specifically designed for gloved hands to suit applications in the most arduous of environments.
Manual operators include twist knob and stainless steel operators with booted handles.
The Viking Xtreme manual valve also features stainless steel components such as end fasteners, internal springs, and handles, which extend valve life in salt spay and high vibration applications.
The bi-directional over molded spool performs well in temperature ranges from -40F to 140F, and pressure ranges from Vacuum to 232 PSG .
Features- This 3/2 versions are available with hand lever, pneumatically actuated and electrically actuated
- This complete the actual range of Viking Xtreme 5/2 and 5/3
- Rail versions have passed shocks & vibration test IEC6173: 1999 cat 1 class B
- 1.2w to 6.8w solenoids depending application with or without manual override
- Up to 16 bar (A & B type) with -40°c to +60°c for hard environment
- No lubrication required
Specifications
Brand
Actuation
- Manual Operated
Approvals & Certifications
- IP65, RoHs, CE, up to 400 Hour Salt Spray & +5 G Shock & Vibration Tested
Body Material
- Anodized Aluminum
Electrical Connectors
- N/A
Fieldbus Protocol
- N/A
Input Supply Voltage
- N/A
Lubricant
- Non-Lube
Maximum Flow (Cv)
- 2.7
Maximum Flow (Q Maximum - L/min)
- N/A
Maximum Manifold Outlets
- N/A
Media
- Air
Minimum Flow (Cv)
- 0.5
Minimum Operating Pressure (psig)
- Vacuum
Mounting Standard
- N/A
Mounting Style
- Inline
Nominal Flow (Qn-L/min)
- N/A
Number of Ports
- 3 or 5
Number of Positions
- 2, 3
Overide Functionality
- Manual Handle, Rotary Switch
Port Size
- 1/8", 1/4", 3/8", 1/2"
Port Type
- BSPP, NPT
Power Consumption
- N/A
Pressure Range (bar)
- Vacuum to 16 bar
Pressure Range (psig)
- Vacuum to 232 psig
Seal Material
- Nitrile
Temperature Range (°C)
- -40° to +60° C
Temperature Range (°F)
- -40° to +140° F
Valve Type
- 3-Way, 4-Way
- Mobile
