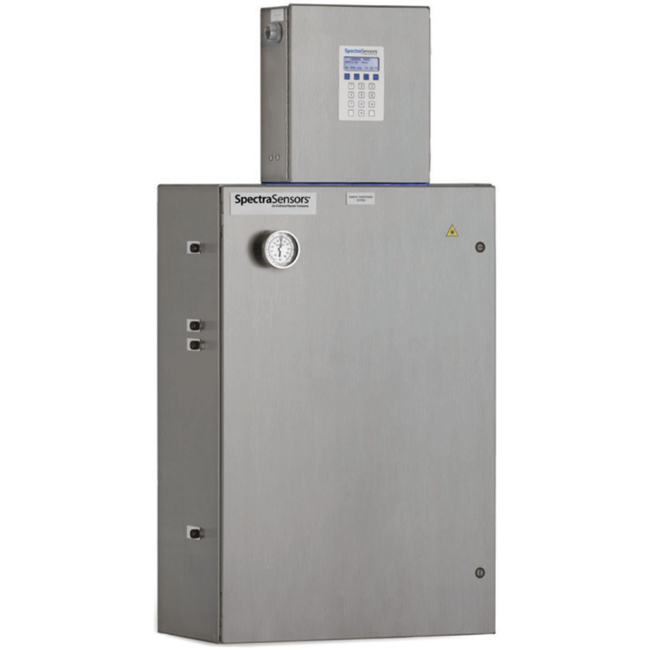

SS2100 TDL Gas Analyzer
Brand: SpectraSensors, Inc
SpectraSensors SS2100 Process Gas Analyzers are exceptionally reliable for measuring trace gas components using Tunable Laser Diode (TDL) technology.
TDL absorption spectroscopy is a high-resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
Features- Laser based – rapid response
- Negligible interference from contaminants
- Non-contact sensing
- Reliable in harsh environments
- Low maintenance
- Intrinsically stable; Field calibration not needed
- Remote diagnostics
- Available for the measurements: H2O (moisture) CO2 (carbon dioxide) H2S (hydrogen sulfide) NH3 (ammonia) C2H2 (acetylene)
- CSA Class I, Div 2, FCC Certifications
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups A, B, C, D, T3 with Heater (T3C without Heater)
- EMC
- FCC
Communication
- Ethernet
- RS-232C
Display
- LCD Display
Enclosure, Body Material
- 304 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Input
- 120/240 Vac ± 10 %, 50/60 Hz, 260 W
- 18-24 Vdc, 1.6 A, Max.
Temperature Range
- -10° to 60° C (14° to 140° F) Optional
- -20° to 50° C (-4° to 122° F)
