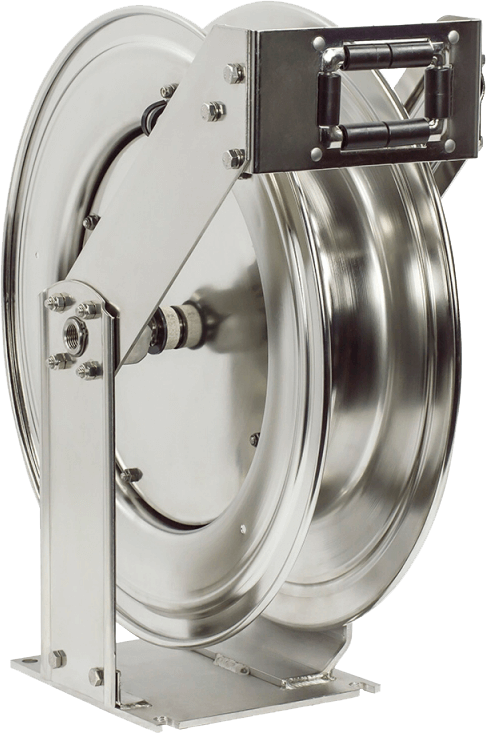

Spring Driven Reels | T-SS Series
Brand: COXREELS®COXREELS® SS Series "Stainless Steel" spring driven hose reels have similar features to their related series, but are constructed of high quality electro - polished stainless steel with stainless steel fluid paths.
They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.
Swivel
- Non - corrosive external fluid path with machined from high quality stainless steel 90° full - flow NPT swivel inlet
- Swivel Seals: NITRILE Non-Toxic Food Grade Grease.
Design & Structure
- Built for rugged mobile applications.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Stainless Steel rollers on 3/4" & 1" models.
- Solid one-piece, heavy gauge 1/4" steel base & support posts for maximum strength.
- 1" solid steel axle & lubricated precision bearings for smooth rotation.
Retract
- Enclosed factory tuned & matched cartridge-style spring motor.
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- Swivel - Non-corrosive external fluid path with machined from high quality stainless steel 90º full-flow NPT swivel inlet.
- Cartridge Motor - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs- Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base- Sturdy dual pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- Multi - Position Guide Arm - Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Other Features Include - Sturdy permanently lubricated precision bearings
Specifications
Brand
PSI
- Low Pressure - Up to 1000
- Medium Pressure - 1000 to 4000
Inside Diameter
- 3/8"
- 1/2"
- 3/4"
Length
- 50 ft
- 75'
- 100 ft
