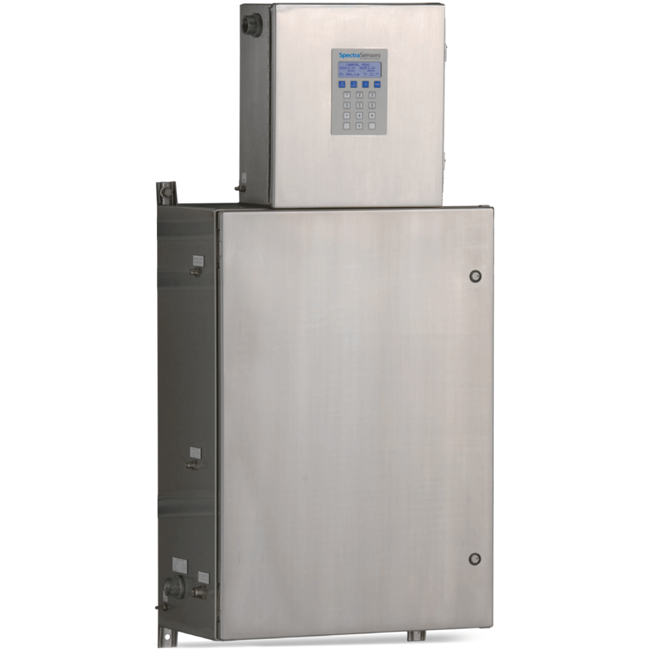

SS3000e Dual Channel H2O/CO₂ Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS3000e Dual Channel Gas Analyzer is capable of measuring moisture and carbon dioxide in this cost effective dual channel system which enhances savings by incorporating two sensors in one.
Features- Virtually maintenance free
- No interference from glycol, methanol or amine contaminants (vapor phase)
- Accurate, real-time measurements
- No wet-up or dry-down delays
- Reliable in harsh environments
- Short term payback; no consumables
- NIST-traceable calibration
- Analog and digital outputs for remote monitoring
- Heated and unheated stainless steel sample conditioning enclosures with NEMA-4X System Rating
- Optional RS485 and ethernet communications
- AMS100 Analyzer Management Software
- CSA Certification
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups B, C, D, T3C (T3 with Heaters)
Communication
- Ethernet
- Modbus Gould RTU or Daniel RTU or ASCII
- RS-232C
- RS-485
Current
- 1 A, Max.
- 1.6 A, Max.
- 2 A, Max.
Display
- LCD Display
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Input
- 100-240 Vac, 50/60 Hz
- 18-24 Vdc Optional
Materials of Construction
- Sample Cell: 316L Series Polished Stainless Steel - Standard
NACE & NIST
- NIST
Temperature Range
- -10° to 60° C (14° to 140° F) Optional
- -20° to 50° C (-4° to 122° F) Standard
