Model 990 High Performance Lined Ball Valve

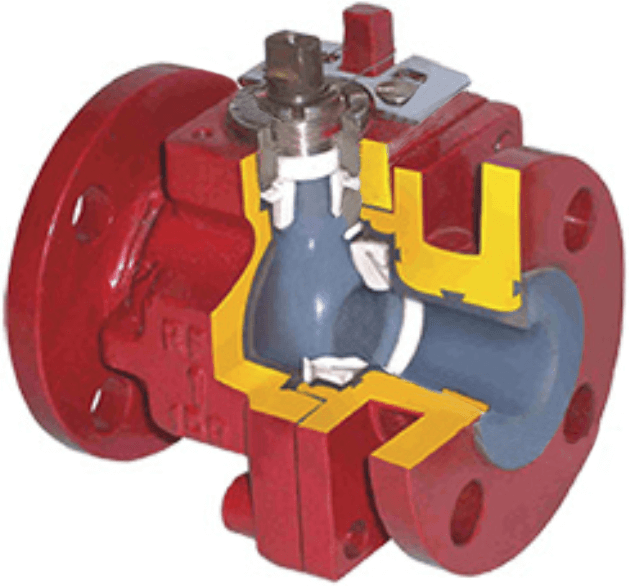

Brand: ChemValveModel 990 Valves’ Super Seat© design is unique in nature and is copyrighted. The Flexible Super Seat© gives the ball a cushioning effect whenever it comes into contact with the body. The ball is always trying to reach the body while the valve is in operation due to intense pressure conditions inside the valve. However, the unique design of The Flexible Super Seat© gives the ball an added cushioning effect, thus extending the life of the valve. Model 990 Ball Valves’ Secondary Seal is made of PTFE (Poly Tetra Flouro Ethylene), which gives lasting life to the stem. The inherent properties of PTFE give the Ball a cushioning effect, thus keeping the ball intact. Model 990 Ball Valves’ design features the ball and stem as an integral piece, thus giving them longer life besides ensuring smooth and trouble-free operation. The two-piece ball and stem often tend to break down quickly.
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCB)
- Ductile Iron
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150#
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150#
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150#
Flange Size - 10” (DN 250)
- 10" (DN 250) - 150#
Flange Size - 12” (DN 300)
- 12" (DN 300) - 150#
Flange Size - 14” (DN 350)
- 14" (DN 350) - 150#
Flange Size - 16” (DN 400)
- 16" (DN 400) - 150#
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - 150#
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150#
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150#
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - 150#
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150#
Flange Size - 6” (DN 150)
- 6" (DN 150) - 150#
Flange Size - 8” (DN 200)
- 8" (DN 200) - 150#
