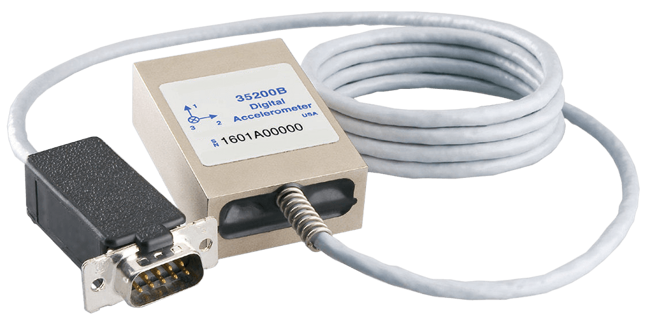

15200B, 25200B, 35200B Plug & Play Accelerometer
Brand: American Sensor Technologies IncThese digital accelerometers are complete, easy-to-use, user configurable sensors containing one to three accelerometers, a temperature sensor, signal processor, RS-485 interface and three Analog outputs in a small, easy-to-install package.
All channels are sampled simultaneously to avoid data skewing. The digital signal processor takes 16-bit samples, filters, ranges, and calibration compensates at up to 42,500 samples/sec/channel.
Digital data can be streamed out at up to 3 Mbit/sec. The output range, filter frequency and calibration of each channel, as well as telemetry configuration, can be set by the user via the RS-485 command processor.
CRC-8 and CRC-16 error checking is used to ensure command and data integrity. The built-in temperature sensor can be used by critical applications to correct for any residual temperature effects.
Specifications
Accuracy
- ± 0.2 % of Full Scale Reading - Non-Linearity
Constant Acceleration
- ± 35 to ± 70 G
Electrical Connectors
- 3 x AWG 24
Enclosure, Body Material
- Nickel-Plated Aluminum
Excitation Voltage
- 8.5-36 V
Frequency
- 0 to 400 Hz
- 42,500 Hz - Sensor Scan Rate
Input
- 55 mA
Input Impedance
- 130 ohms
Mounting
- Screw Mount
Output
- ± 2 Vdc - FSO Voltage
- 0.50-4.50 V (Voltage Swing)
- 2,500 ± 10 mV - Zero Acceleration Output
Output Noise
- 1.1 to 1.8 mg/√Hz
Resolution
- 0.25° C
Sensitivity
- ± 0.5 %
- 0.25 % - Transverse Sensitivity
Shock
- ± 1500 G - Shock Survival
Supply Voltage
- ± 80 V - Input Voltage
- 8.5-36 V - Input Voltage - Operating
Temperature Range
- -40° to 85° C (-40° to 185° F)
Vibration
- MIL-STD-704A
