AST Industrial Pressure Transducer, U7100

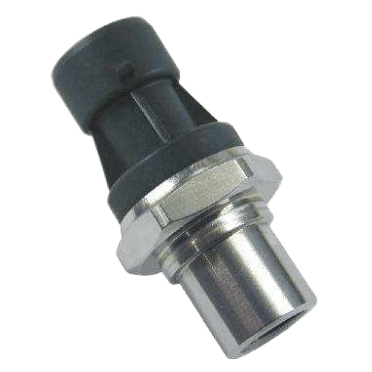

U7100 Industrial Pressure Transducer

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The U7100 pressure transducer from the UltraStable line of MEAS sets a new price performance standard for demanding engine and vehicle, and industrial applications. T

his transducer is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam and corrosive fluids. The transducer pressure cavity is constructed of 316L stainless steel and there are no internal O-rings or organics exposed to the pressure media.

Having excellent durability, it is available with a variety of leak-proof, all metal pressure connections. The U7100 is an automotive grade pressure transducer with hermetic pressure ports and an integral electrical connector with standard pressure ranges from 0 to 15, up to 150psi (10Bar).

This pressure sensor exceeds the latest industrial CE requirements and includes automotive electronics requirements such as surge protection, as well as being overvoltage protected to 16Vdc in both positive and reverse polarity.
Features
  • Hermetic Pressure Ports
  • Integral Electrical Connector
  • Survives High Vibration
  • ±0.25% Accuracy
  • Water Resistant 1M Immersion

Specifications

Brand

Accuracy

  • ± 0.25 % of Span

Approvals & Certifications

  • EMC
  • RoHS 2
  • UL 508

Burst Pressure

  • 4X - Max.

Circuit Protection

  • Short Circuit Protected

Compensated Temperature

  • -20° to 85° C (-4° to 185° F)

Electrical Protection

  • Over Voltage Protection - 16 V

Environmental Protection

  • IP67

Humidity

  • Maximum

Insulation Resistance

  • 100 MΩ

Loop Resistance

  • 10 kΩ - Load Resistance

Operating Temperature

  • -40° to 125° C (-40° to 257° F)

Output

  • 0.5 to 4.5 V

Pressure Cycles

  • 10 Million Cycles

Pressure Range

  • bar: 0 to 10.3
  • kPa: 0 to 1,034
  • psi: 0 to 150

Reverse Polarity Protection

  • Reverse Voltege - 16 V

Shock

  • Half-Sine, Peak: 50 G, 11 ms MIL-STD-202, Method 213B, Condition A

Stability

  • ± 0.25 % of Span/Year - Long Term Stability

Storage Temperature

  • -40° to 125° C (-40° to 250° F)

Supply Voltage

  • 4.75-5.25 V

Vibration

  • 20 G, 10 - 2000 Hz MIL-STD-810C, Method 514.2, Curve L

  • On and Off Highway Engines and Vehicles
  • HVAC Refrigeration Controls
  • Compressors
  • Hydraulics
  • Energy and Water Management
