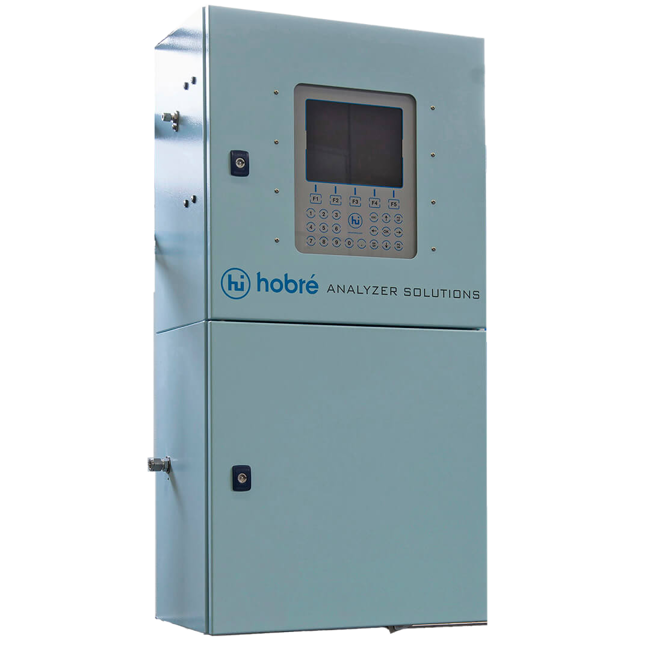

WIM COMPAS ™ Fuel & Flare Gas Analyzer
Brand: Hobré Instruments B.V.
The WIM COMPAS™ adds to Hobré’s portfolio of process analyzers for (Fuel and flare gas combustion measuring) measuring the Wobbe Index, heating value (BTU) and the Combustion Air Requirement Index (CARI).
Designed and manufactured in-house, the WIM COMPAS™ builds on hobré’s 20+ years of success and experience with residual oxygen type analyzers.
The WIM COMPAS™ is used to control the thermal input and air:fuel ratio in such a way that disturbances caused by fuel gas quality fluctuations are minimized, the combustion process occurs with maximum efficiency and emissions are reduced to a minimum.
Features- Can be installed outdoors
- Easy to operate
- Unmatched response time
- Suitable for installation in hazardous area
- Safe flameless design
- Handles high dewpoint
- Measures flare gases and sour gases
- Zero Hydrocarbon Emission
Specifications
Brand
Installation Options
- ATEX II 2G/3G Ex px [ib] IIC T3/T4 Gb (Zone 1 / 2)
- Class 1, Div. 2, Group B, C, D T3 (Zone 2 compliant)
- IECEx Ex px [ib] IIC T3/T4 Gb
- KCS Ex px [ib] IIC T3/T4 Gb
- TRCU (EAC) Ex px [ib] IIC T3/T4 Gb
- PECO (CCOE) Ex px [ib] IIC T3/T4 Gb
Accuracy
- Continuous: < ± 0,4 % of Full Scale for Natural Gas
- Injection: ± 1,0 % of Full Scale
Repeatability
- < ± 0,05 % of Full Scale or ± 30 kJ/Nm³
- Natural Gas
- Fuel Gas
- Flare Gas
- Biogas
- Blast Furnace Gas
- Coke Oven Gas
