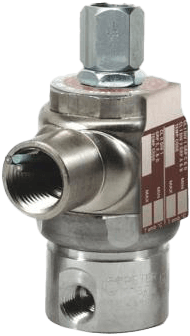

Series 20 Model EL26
Brand: Peter Paul Electronics Co, IncPeterPaul explosion proof solenoid valves are used where fire or explosion hazards exist due to the presence of flammable gas or vapors, flammable liquids, combustible dust or easily ignitable fibers.
The low watt feature assures low power consumption reducing drain on electrical systems. This is a benefit for renewable energy applications and where the solenoid valve must be on continuously.
Features- Heavy duty and made of stainless steel.
- A real workhorse with proven performance.
- Low power consumption best for renewable energy and limited resource applications.
- Wide range of orifice sizes from 1/32′′ to 1/8′′.
Specifications
Valve Temperature Range
- 22° F(-30° C) to 140° F (60° C)
Burst Pressure
- 5,000 psi
Leakage
- Bubble tight for standard valves.
Vacuum
- To 5 microns
Coil Voltage
- 12, 24/DC
Nominal Power
- 12, 24/DC
Coil Construction
- Potted Class F coil with 36" black lead wires and 36" green ground wire
Typical Response Time on Air
- 4 - 16 ms
Operating Speed
- Up to 600 CPM
Duty Cycle
- Continuous
Body
- Stainless Steel (Standard)
Internal Components
- Stainless Steel
Elastomers
- Buna, Fluorocarbon (FKM), Low Temperature Buna, EPDM or Neoprene
Porting
- 1/8" OR 1/4" NPT
Housing
- Flameproof construction with 1/2" NPT conduit
Listings
- Valves are cULus listed for Hazardous Locations. — Class I, Div. 1, Group C and D - Class II, Div. 1, Group E, F, and G, Div. 2 Groups A, B, C, D, E, F, and G.
Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
Valve Weight
- 1.38 lb
