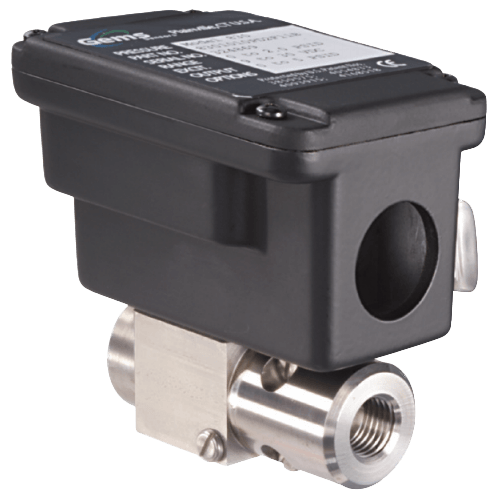

830 Series Wet/Wet Differential Pressure Transducer
Brand: Gems Sensors, Inc
The 830 Series is designed for wet-to-wet differential pressure measurements of liquids or gases.
They feature fast-response capacitance sensors that respond approximately 20x faster than conventional fluid-filled transducers!
Sensors are coupled to signal conditioned electronic circuitry for highly accurate, linear Analog output proportional to pressure. Both unidirectional and bidirectional models are available for line pressures up to 350 psi (24 bar).
These units feature bleed ports that allow for total elimination of air in the line and pressure cavities.
Features- Liquid Media on Both Ports
- Bleed Screws for Accurate Results
- Optional Manifold for Easy Installation
Specifications
Brand
Accuracy
- 0.25 % of Full Scale
Applications
- Energy Management Systems
- Filter Performance Monitoring
- Liquid & Gas Flow Measurement
- Liquid Level Measurement
- Process Control Systems
Approvals & Certifications
- CE
Burst Pressure
- psi: 200 to 1,000 (kPa: 1,379 to 6,895, bar: 13.79 to 68.95)
Compensated Temperature
- -1° to 65° C (30° to 150° F)
Conduit Connection
- 1/2" Conduit
Constant Acceleration
- 10 G
Electrical Connectors
- 7/8" Knock Out for 1/2" Conduit, Screw Terminal Strip
Enclosure, Body Material
- Aluminum
- Stainless Steel
Line Pressure
- psi: 350 (kPa: 2,413, bar: 24.13) - Max.
Load Resistance
- Minimum 5,000 kΩ
Media
- Liquids & Gases
NPT Connection
- 1/4"-18 NPT Female for 3-Valve Manifold
O-Ring Material
- Nitrile for 3-Valve Manifold
Operating Temperature
- -18° to 80° C (0° to 175° F)
Output
- 0-10 Vdc, 3-Wire
- 0-5 Vdc
- 4-20 mA, 2-Wire
Pressure Cycles
- Fatigue Life > 1 Million Cycles
Pressure Range
- bar: -3.44 to 6.89
- kPa: -344.7 to 689.5
- psid: -50 to 100
Proof Pressure
- psi: 1.25 to 350 (kPa: 8.61 to 2,413, bar: 0.08 to 24.13)
Seat / Seal Material
- Bleed Screw Seal: Silicone
- Bleed Screw Seal: Viton
- Bleed Screw Seals: Buna-N
Shock
- 50 G
Span & Zero Effect
- 0.02 % of Full Scale/°F (0.036 % of Full Scale/°C)
Supply Voltage
- 13-30 Vdc for 10 Vdc Output
- 9-30 Vdc
Thermal Drift
- 0.5 % of Full Scale Per Year
Tolerance
- Zero & Span Tolerance: 0.5 % of Full Scale
Vibration
- 5 G Peak Sinusoidal, 5 to 500 Hz
Wetted Materials
- 300 Stainless Steel
- 360 Brass for 3-Valve Manifold
- Acetal Plug Valves for 3-Valve Manifold
- Copper 122 for 3-Valve Manifold
- Silicone
- Viton
