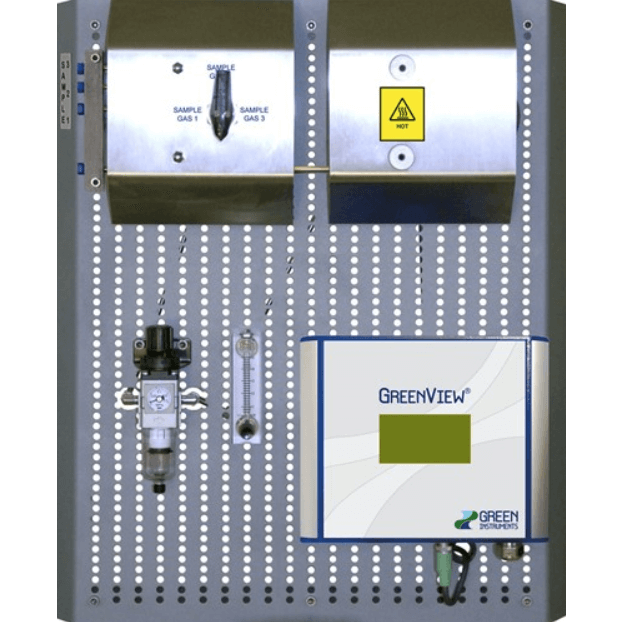

G361x Analyzing System
Brand: Green Instruments A/SThe G361x Oxygen Analyzer for Nitrogen Generators is designed to measure oxygen concentrations in nitrogen. The measurement range is 0 to 21% with an accuracy of ±0.5%.
Specifications
Brand
Accuracy
- ± 0.5 % of the Measurement Range
Ambient Temperature Range
- 0° to 70° C (32° to 158° F) - G36p
- -15° to 55° C (5° to 131° F) - G36a
Approvals & Certifications
- BV
- CE
- DNV
- LLOYD
- MED
BSP Connection
- 1/8" BSP Female
Display
- Display with LED Typical 3-Digits
- Interface: Touch Screen 71 x 39 mm with Trend Graph Display
Environmental Protection
- IP55
- IP67
Flow Rate
- Digital Flow Switch: 0.2 to 10 L/minute
- Sample Flow: 1 to 5 L/minute
Load Resistance
- 600 ohms / 24 Vdc, Max.
Measuring Range
- 0 to 21 % O₂
Mounting
- Panel Mounted - G36p
Output
- Output Signal: 2 x 4-20 mA - Range Selectable, Default - A-Out1: 0 to 25 % O₂ / A-Out2 Not in Use
Power Supply
- 100-230 Vac at 50/60 Hz - G36a
- 24 Vdc - G36p
Pressure Range
- Sample Pressure - psi: 58 to 145 (kPa: 400 to 1,000, bar: 4 to 10)
Relay Output
- Alarm Relays: 4 Relays used for Different Functions, Volt Free, 24 Vac/dc, 5 A
Repeatability
- ± 0.1 % of the Measurement Range
Response Time
- 90 % of Full Scale in less than 45 seconds
Sensor, Probe Type
- Sensor: Heated Zirconia - SEN 9 Screw-in Typical
Switch Type
- Transistor (NPN)
Temperature Range
- Sample Temperature: 0° to 70° C (32° to 158° F)
