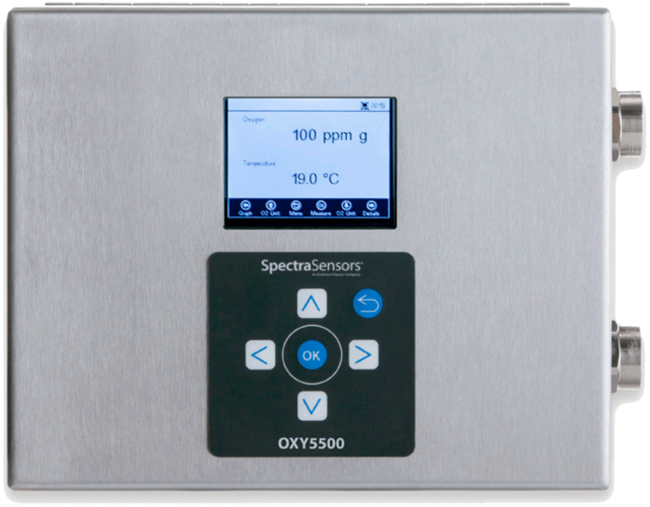

OXY5500 Oxygen Analyzer
Brand: SpectraSensors, IncSpectraSensors OXY5500 Oxygen Analyzer is a compact, stand-alone one-channel meter with an LCD display and built-in data logger.
The sensor probe is inserted into the process stream and is connected to the controller by an optical fiber.
Full Sample Conditioning Systems are available with the OXY5500, as well as software for PC interface.
Features- Easy-to-navigate display and menu
- Low power consumption
- Data logging for 30 days
- Small optical sensor, no membrane or consumable chemicals
- Excellent long term stability
- Not affected by H2S or other sulfur species
- No H2S scrubber
- Fast and continuous
- No moving parts, simple operation
- Not affected by electrical interferences and magnetic fields
- NEMA 4X and IP65
- Hazardous Area Certifications CSA Class I, Div 2 IECEx Zone 2 ATEX Zone 2
Specifications
Brand
Approvals & Certifications
- ATEX: II 3 G Ex NA IIC T3 Gc
- CE
- CSA Class I, Div. 2, Groups A, B, C, D, T4
- IECEx: Ex NA IIC T3 Gc
Communication
- Ethernet
- RS-232C
- RS-485
Display
- LCD Display
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
Environmental Protection
- IP65
- IP66
- NEMA 4X
Input
- 18-30 Vdc
- 85-260 Vac, 50/60 Hz
Input Power
- 14 W at 120 Vac
- 22 W at 240 Vac
- 5 W, Max.
Temperature Range
- -20° to 50° C (-4° to 122° F)
