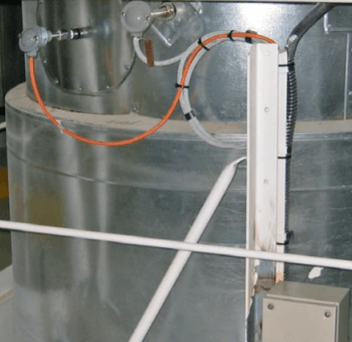

G5100 EGE Monitor
Brand: Green Instruments A/SSoot deposit on the gas side and scale build up on the water side of the boiler tubes will reduce the heat transfer efficiency and thereby also reduce the performance of the exhaust gas economizer (EGE). The loss of heat exchange can cause soot-burning to develop into high temperature fires. In extreme situations, heat accumulation, steam built-up and steam blockage of the water circulation within the boiler tubes may lead to EGE meltdown.
To maintain efficiency of the EGE and to avoid any critical problems, you need to keep the boiler clean! In order to help you accomplish that task easily, we offer a system, which provides an accurate diagnosis of soot contamination and scale built-up. This provides you the best time for cleaning. The G5100 EGE Monitor is designed for the dynamic monitoring of multiple parameters including pressure drop across the EGE and inlet and outlet temperatures in relation to the engine load.
Specifications
Brand
Ambient Temperature Range
- 0° to 50° C (32° to 122° F)
Differential Pressure
- DP Transmitter Range - mmH₂O: 0 to 400
Display
- Digital Display: Touch Screen (95.4 x 53.9 mm)
Flow Rate
- 0 to 50 m³/hour
Input
- Analog Input for Load Signal (Active Signal) & for Flow (Passive Signal): 4-20 mA
Interface Connection
- System Interface Via Module: Analog 4-20 mA & CAN Open
Mounting
- Remote Input Module: Wall Mounted
Output
- DP Transmitter Signal Output, Sensor Signal Output, Flow Signal Output: 4-20 mA
Power Supply
- 100-240 Vac at 50/60 Hz, 0.9 A
- Internal: 24 Vdc
Relay Output
- Interface: 4 Alarm Relay Outputs - Volt Free, 230 Vac/5 A
Sensor, Probe Type
- Flow Sensor Typical: Pitot Tube
- Sensor: RT Typical AUI, Pt100
Temperature Range
- Sensor Range: 0° to 500° C (32° to 932° F)
