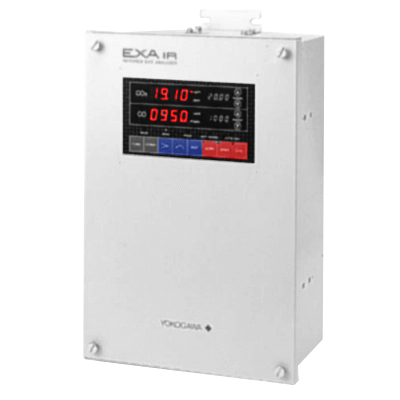

IR100TA Vertical Single-Gas Analyzer
Brand: Yokogawa Electric CorporationModel IR100 is an intelligent universal infrared gas analyzer for CO₂, CO and CH₄. The analyzer is easy to maintain and works steadily over long periods.
The ideal application of this analyzer is continuous measurement for the control and monitoring of combustion in various industrial furnaces as well as continuous measurement for the study of plants.
Features- Two available models: simultaneous dual-gas (CO and CO2) measurement model and single-gas dual-range measurement model
- Stable operation over long periods
- Influenced less by presence of another interfering gas
- Easy maintenance
- Wide variety of additional functions: self-diagnosis, simple calibration, automatic calibration, remote switching of the measuring range, and range identification
Specifications
Ambient Temperature Range
- -5° to 45° C (23° to 113° F)
Applications
- Apple & Rice Storage Facility
- Blast Furnace
- Boilers
- Brewery
- Carbonizing & Transforming Furnace
- Cement Kiln
- Coal Kiln
- Coke Oven
- Converter
- Electric Furnace
- Fermentation Plant
- Inert Gas Generator
- Leak Gas Detection
- Plant Carbon Dioxide Assimilation
BSP Connection
- 1/4" BSPT Female
Connection Material
- SUS 304 Stainless Steel - Material of Cell
Consumption
- 37 VA, Max.
Enclosure, Body Material
- Steel - for Indoor Use
Flow Rate
- 0.5 to 1 L/minute
Humidity
- 100 % RH or Less (Avoid Condensation) - Storage Humidity
- 90 % RH or Less - Ambient Humidity
Input
- 125/250 V, 500 mA - Fuse
Load
- 550 ohms - Max.
Materials of Construction
- Gold - Material of Cell
Measuring Range
- 0 to 1,000 ppm - for CH₄
- 0 to 500 ppm - for CO₂ & CO
- Dust: 100 µg/Nm³ - with the Particle Size of 1 µm or Less
Media
- Corrosive Gases
Mounting
- Panel Mount
- Wall Mounted
NPT Connection
- 1/4" NPT Female
O-Ring Material
- Neoprene
Output
- 0-1 Vdc, Non-insulated, Linearized Output Signals
- 4-20 mA - Max.
Power Supply
- 100 Vac ± 10 %, 50/60 Hz
- 115 Vac ± 10 %, 50/60 Hz
- 220 Vac ± 10 %, 50/60 Hz
Pressure Range
- psi: 0.072 (kPa: 0.5, bar: 0.005) or more
Repeatability
- ± 0.5 % of Full Scale - for the Primary Range (Lower Range)
- ± 1 % of Full Scale - for the secondary Range (Higher Range)
Response Time
- 15 seconds or Less Including the Time Required for Substitution of the Sample Cell (90 % Response)
Span & Zero Effect
- ± 2 % of Full Scale Per Week
Storage Temperature
- -20° to 60° C (-4° to 140° F)
Temperature Range
- 0° to 50° C (32° to 122° F)
Window Material
- CaF - Cell Window
