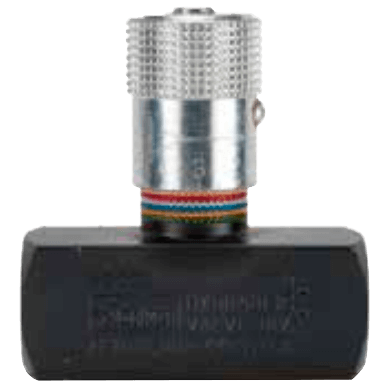

N Series Needle Valve
Brand: PioneerSeries “N” needle valves are ideal as speed controls on hydraulic and pneumatic systems where a reverse flow check is not needed. They provide excellent control and a reliable shutoff in a very small envelope.
Operation
A two-step needle allows fine adjustment at low flow by using the first three turns of the adjusting knob; the next three turns open the valve to full flow, and also provide standard throttling adjustments.
Features- The exclusive “Colorflow” color-band reference scale on the valve stem is a great convenience and time-saver in setting the valve originally and in returning it to any previous setting.
- A simple set screw locks the valve on any desired setting.
- A tamperproof option (T) feature is also available to prevent accidental or intentional adjustment of flow setting.
Specifications
Brand
Maximum Operating Pressure
- 500 to 5,000 psi (35 to 345 bar)
Enclosure / Body Material
- Brass
- Steel & Stainless Steel
Operating Temperature
- -40° to +121° C (-40° to +250° F)
Seal Material
- Nitrile
- Fluorocarbon
