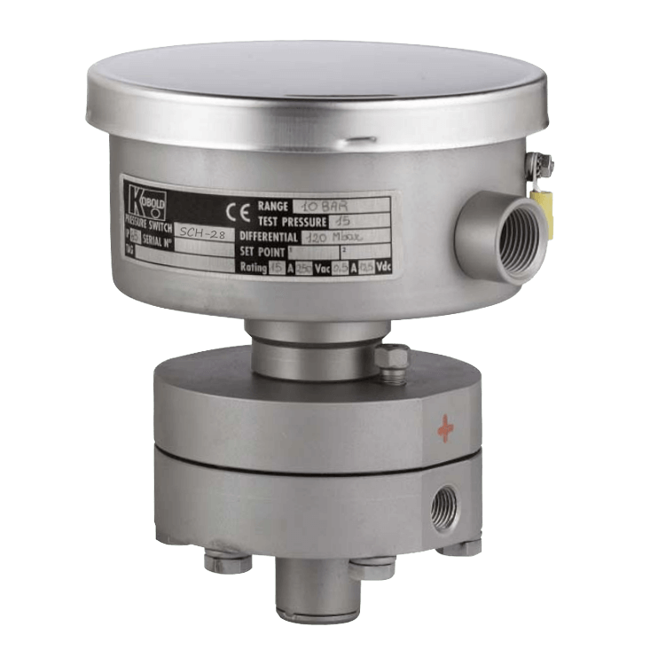

SCH-28 Differential Pressure Switch
Brand: KOBOLD Instruments, IncThese Differential pressure switches are IP65, and suitable for a variety of applications such as: food industry, cannery, petrochemical, conventional and nuclear power station where it is required to control differential pressure, level, flow.
The sensing element is a metallic diaphragm with two metallic bellows and acts directly on the microswitch through a self-centering pivot.
The simplicity of the design, without levers, cams or similar mechanism, gives the unit an exceptionally long working life.
Specifications
Brand
Adjustment Type
- Internal, Micrometric Adjustable
Ambient Temperature Range
- -25° to 65° C (-13° to 149° F)
Applications
- Conventional & Nuclear Power Station
- Food Industry
- Petrochemical Plants
- Pharmaceutical
Approvals & Certifications
- IEC - 529
BSP Connection
- G 1/2" Male
Cover Material
- 304 Stainless Steel
- Bayonet Lock
Diaphragm Material
- AISI 316 Stainless Steel
Differential Pressure
- Fixed, Adjustable from 10 % to 50 % of Setting Range
Electrical Connectors
- Terminal Strip
Electrical Contacts
- 1 Internal & 1 External
Electrical Rating
- 0.1 A at 24 Vdc Resistive Load
- 1 A at 125 Vac Resistive Load
- 15 A at 125 Vac Resistive Load
- 15 A at 250 Vac Resistive Load
- 20 A at 125 Vac Resistive Load
- 20 A at 250 Vac Resistive Load
- 6 A at 24 Vdc Resistive Load
Environmental Protection
- IP65
Gasket Material
- PTFE
Materials of Construction
- 321 Stainless Steel - Bellows
- AISI 304 Stainless Steel - Tag
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male
- 1/4" NPT Female
Plug Material
- AISI 316 Stainless Steel
Pressure Range
- psi: 0 to 145.038 (kPa: 0 to 1000, bar 0 to 10)
Process Connection Material
- AISI 316 Stainless Steel
Process Temperature
- 100° C (212° F) - Max.
Repeatability
- ≤ 1 % - Full Setting Value
Set Point - Decreasing
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 145
Set Point - Increasing
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 145
Switch Type
- 1 to 2 SPDT Microswitches
Temperature Range
- 100° C (212° F) - Max.
Thermal Drift
- ≤ 0.05 %/°C (≤ 0.027 %/°F)
