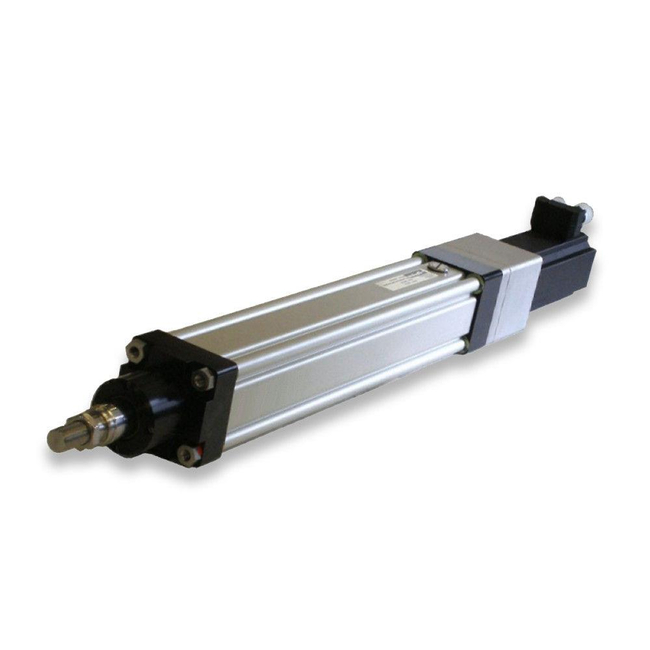

ET100 Screw Driven Electric Cylinder/Linear Actuator with Piston Rod
Brand: Parker HannifinThe ET100 'ElectroThrust' Series of electric cylinder linear actuators combine an unparalleled design with a variety of options that make it easy to integrate into any automation application.
Produced to hard metric ISO standards, the ET-series electric cylinders can be mounted into existing fluid power cylinder applications, adding infinite programmability and control to the durability and long life expected of hydraulic and pneumatic cylinders.
Features- Cylinder Size : 100 (flange according to ISO 15552-12)
- Thrust forces : up to 21200 N
- Stroke lengths : up to 1500 mm
- Speeds : up to 1.3 m/s
- Accelerations : up to 10 m/s²
- Typical Repeatability : ± 0.07 mm
- High mechanical efficiency (up to 90%)
- Inline or parallel motor mounting
- Precision anti-rotation roller bearing rod support carriage
- Angular contact thrust bearings
- Anodized aluminum cylinder body
- IP65 version available, suitable for washdown applications
Specifications
Brand
Corrosion Resistant Option
- Yes (Stainless Steel / Aluminum Parts Outside)
Drive Type
- Screw
IP Protection Rating
- IP54 / IP65 (Optional)
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Speed (inch/sec)
- 52.75
Maximum Speed (m/sec)
- 1.34
Maximum Stroke (inch)
- 59
Maximum Stroke (mm)
- 1500
Maximum Thrust (Lbs)
- 4766
Maximum Thrust (N)
- 21200
Operating Temperature (°C)
- 0° to +60° C
Operating Temperature (°F)
- +32° to +140° F
Position Repeatability (± Inch)
- 0.003
Position Repeatability (± mm)
- 0.07
Profile Width (mm)
- 114
Rod End Dimension
- ISO 100
Series
- ET
