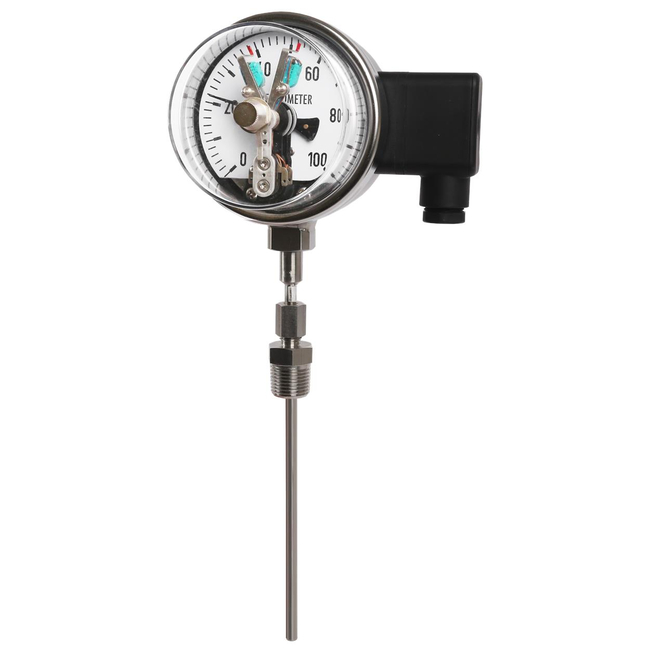

Euro Gauge Inductive Contact Type Bi-Metal Temperature Gauge T511 (H), T512 (H/L), T513 (L), T514 (H/HH), T515 (L/LL)
Brand: Wise Control IncContact type temperature gauge is installed with electric contact actuated by pointer. It provides the function which electrical circuit can be opened or closed by manual set point.
It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Case
- 304 Stainless Steel
Contacts
- Maximum
- Contact Rating: AC 220 V, 0.25 A
- DC 100 V, 0.5 A
- With max. No. of Contact: 2 Sets per Gauge
Cover
- 304 Stainless Steel
- Bayonet Typical
Dial
- White Aluminum with Black Graduations
Location of Stem
- Bottom Connection, Surface, Case Mounting
Nominal Diameter
- 100 & 160 mm
Options
- Special Accuracy, ± 1.0 % of Full Scale
Pointer
- Black Painted Aluminum Alloy
Stem Out Diameter
- 304, 316 & 316L Stainless Steel
- Maximum
- 6.0, 6.4, 8.0 & 10.0 mm Diameter
Stem, Process Connection
- 3/8", 1/2", 3/4" PT or NPT G 1/2B, G 3/4B
Temperature Element
- Coiled BiMetal
Window Material
- Polycarbonate: 100 & 160 mm
- Safety Glass: Only Available with Diameter 100 mm
Working Range
- Maximum
