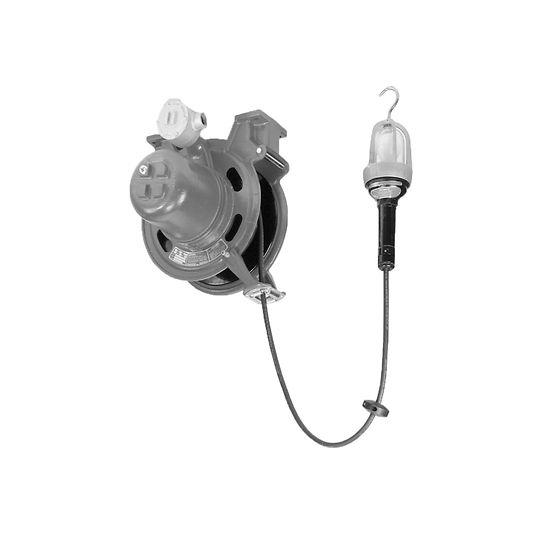

Appleton™ AERL Series Explosion-Proof Reelites™
Brand: AppletonAERL Series Explosionproof Reelites™ transfer safe, uninterrupted power or control signals for equipment requiring #16 or #14 gauge type SO oil-resistant cable with 2 to 4 conductors.
These powder coated aluminum and steel Reelites™ are designed for reliable operation and long life with minimal maintenance.
Most models are configured to provide constant cable tension, but all models contain a built-in cable locking ratchet mechanism that can be easily engaged in the field.
Features- UL and cUL Listed. Class I, Division 1 and 2, Group D
- Class II, Division 1 and 2 , Groups E, F, G
- Class III
- Designed for lift, pick-up and suspension applications in Class I, Group D; Class II, Groups E, F and G; and Class III hazardous locations containing flammable vapors, gases or combustible dust. Transfers safe, uninterrupted power or control signals for equipment requiring #16 and #14 gauge type SO oil-resistant cable with 2 to 4 conductors
- Maximum operating capacity 15 Amps, 600 Vac/250 Vdc
- Compact size, light weight and rugged construction for long service with minimum maintenance
- Factory prewired and sealed to large junction box for fast, easy installation
- Safety ground through separate collector ring and frame provides positive grounding path
- Lifetime-lubricated bearings reduce maintenance
- Easy-to-remove cover provides quick access to springs. Cast threaded cover is removable for inspection of ring and brush assembly
- Each spring is separately contained in a safety cartridge to eliminate danger during handling or replacement
- Built-in cable locking ratchet is provided with all reels in this series and can be easily activated when required
- Available with cable lengths up to 15.2 meters (50 feet)
- Includes adjustable four-roller cable outlet guide. Other optional cable guides and swivel bases are available
Specifications
Brand
Approvals & Certifications
- UL & cUL Listed. Explosion-proof (Class I, Div. 1)
Cable Length
- 30 or 50 ft
Materials & Finishes
- Collector Rings: Copper
- Brushes: High-density Copper-graphite
- Reel Sides are Constructed of Steel with a Red Epoxy Powder-Coated Cast Aluminum Frame, Copper Collector Rings & High-density Copper-Graphite Brushes. Available with Either 16 or 14 Gauge SO Cable
Mounting Type
- Can be Either Ceiling or Wall Mounted
Number of Conductors
- 2 to 4-Conductors
Rating
- 15 Amps, 600 Vac / 250 Vdc
