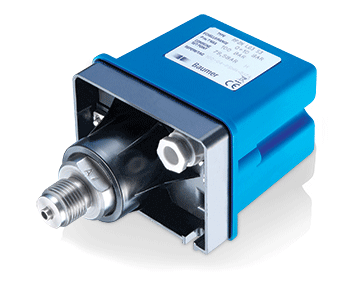

RP2N Compact Pressure Switch
Brand: Bourdon
Features
- Excellent repeatability
- Dead band adjustment for regulation
- Fix dead band for control
- Resistant to accidental overpressure
- Light weight
Specifications
Brand
Adjustment
- Internal Adjustment Possible for Set Point & Deadband
Ambient Temperature Range
- -30° to +70° C
Approvals & Certifications
- Low Voltage Directive (LVD) 2014/35/UE
Body Material
- Black Painted, Zamak
Case Material
- Blue, Polyamide PA 6
Diaphragm
- Stainless Steel 1.4404, AISI 316L
Electrical Connectors
- Via Internal Cable Gland for Ø 5.5 to 8.5 mm
Ground Connection
- Via Internal Terminal Block
IP Protection Rating
- IP66
Media Temperature
- -40° to +150° C
Mounting
- Wall Mounting, 2 x M5 Screws
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Scale
- Internal Graduated Scale
Storage Temperature
- -40° to +70° C
Weight
- 960 g
