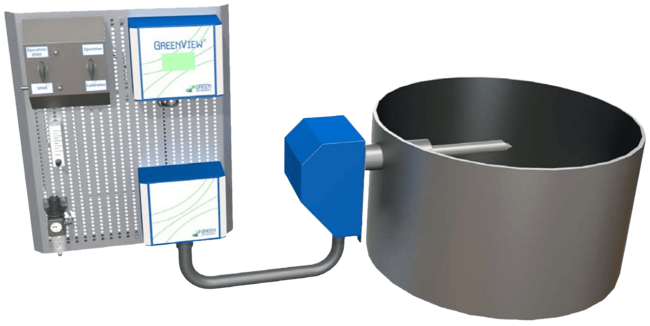

G4130 NOx/O2 Analyzing System
Brand: Green Instruments A/SThe G4130 NOx/O2 Analyzing System is a direct in situ gas analyzer that monitors NOx and O2 concentrations in emission gas. It uses a zirconium oxide sensor with multiple diffusion cells which allows real time measurements on a wet basis at high temperatures.
Specifications
Brand
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Approvals & Certifications
- Instrument Air Quality According ISO 8573-1
Approvals & Certifications
- LLOYD
BSP Connection
- 1/8" BSP
- 1-1/2" BSP
Consumption
- Maximum
Display
- Touch Screen 71 x 39 mm with Trend Graph Display
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP67
Flow Rate
- Calibration Air Flow: Approximately 0.5 to 1 L/minute
Length
- Mounting Typical: 7.48" (190 mm)
- Umbilical Cord: 9.84 feet (3 m)
Load Resistance
- Maximum
Measuring Range
- NOx: 0 to 1,500 ppm (Full Scale)
- O₂: 0 to 21 % (Full Scale)
Output
- 2 x 4-20 mA - Range Selectable - Default for O₂: 0 to 25 % for NOx: 0 to 2,000 ppm
Power Supply
- 100-230 Vac at 50/60 Hz
- 24 Vdc
Relay Output
- Alarm Relays: Volt Free, 24 Vac/dc, 5 A
Sensor, Probe Length
- Probe Insert Length: Approximately 8.18 to 13.3" (208 to 338 mm) for Duct Diameters 9.25 to 110.23" (235 to 2,800 mm)
Sensor, Probe Type
- Sensor Technology: Heated Zirconia Typical Sensor
Size
- Mounting Typical (Welding Socket Size O.D.): 2.73" (70 mm)
Supply Pressure
- Air Supply Filter Regulator - psi: 14.5 (kPa: 100, bar: 1) - Max.
Temperature Range
- Sample Temperature: 0° to 500° C (32° to 932° F)
