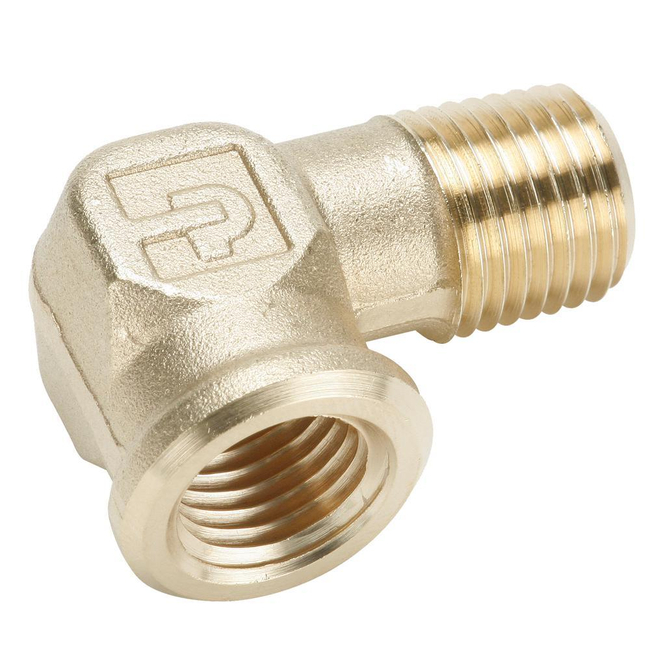

Brass Pipe Fittings
Brand: Parker HannifinParker offers the broadest line of pipe fittings in the marketplace today.
Both forged and extruded shapes ranging in sizes from 1/8” to 1” are available and all pipe fitting threads are made to Dryseal standards.
Parker's pipe fittings meet all functional requirements of SAE J530 and SAE J531. Pipe fittings are compatible with copper and brass tubing and iron pipe.
Features- All brass construction
- Meets functional requirements of SAE J530 and SAE J531
- Threads made to dryseal standards
- Both forging and extrusions available
Specifications
Brand
Applications
- Air Lines, Water Lines & Cooling Lines
Connection Type
- Thread
Industry Standards
- SAE J530, SAE J531
Material
- Brass
Maximum Working Pressure (bar)
- 68
Maximum Working Pressure (psi)
- 1000
Maximum Working Temperature (°C)
- 121° C
Maximum Working Temperature (°F)
- 250° F
Minimum Working Temperature (°C)
- -53° C
Minimum Working Temperature (°F)
- -65° F
Tubing Material
- Copper, Brass, Iron Pipe
- Air Lines
- Water Lines
- Cooling Lines
Documentation
Data Sheets
Certifications & Approvals
- Certificate of Insurance pdf 95 KB
- Certificate of Registration for Albion IN facility 07 013 pdf 155 KB
- Certificate of Registration for Kent OH facility 97 882h pdf 131 KB
- Certificate of Registration for Lakeview MI facility pdf 132 KB
- Certificate of Registration for Otsego MI facility pdf 155 KB
- FSC REACH Product Declaration pdf 32 KB
- Management System Certificate for Otsego MI pdf 110 KB
- RoHS Product Declaration pdf 19 KB
- Safe Drinking Water Act pdf 172 KB
- Tijuana ISO 9001 pdf 477 KB
