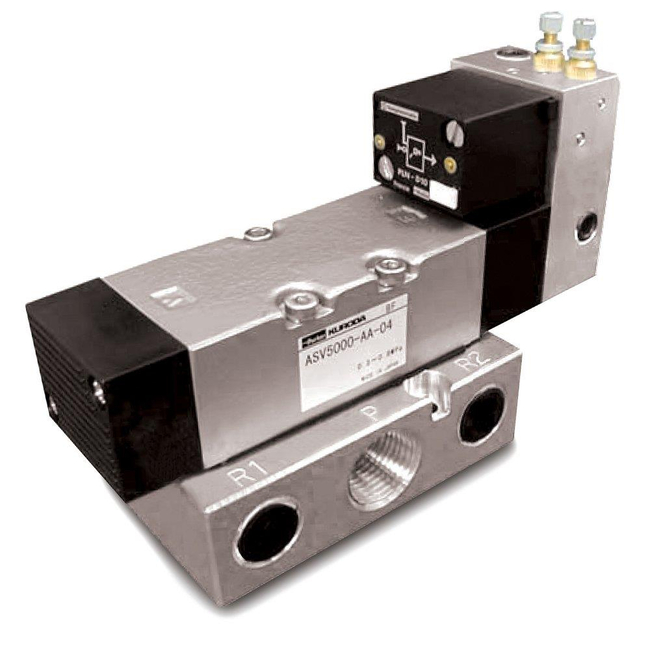

Pneumatically Operated Economical Air Saver Unit ASC / ASV Series
Brand: Parker HannifinThe pulsing air technology in the Air Saver Unit can reduce air consumption by up to 50% by converting continuous blown air into a pulsed air flow without the need for any other external control.
Air is generated in a series of ON and OFF pulses, when the flow is OFF there is no air consumption.
Installation of the Air Saver Unit is simple and reduction in air consumption can be realized immediately.
When using an electrically operated solenoid valve to control the air flow, an Air Saver Unit can quickly and easily be retrofitted provided an immediate reduction in air consumption with no changes to the PLC programme.
When using manual valves such as ball valves, ASV200, ASV500 and ASV2000 units do not need any electrical power.
Simply installing the unit brings immediate reduction in air consumption and improved efficiency.
Features- Large reduction in air consumption
- Saving in compressor power consumption, reducing running costs
- Reduction in plant CO² emissions
- Improved efficiency
Specifications
Brand
Actuation
- Air, Electrical
Input Supply Voltage
- 24 Vdc (ASC/ASO Only)
Lubricant
- Oil-free, Food Grade Grease, White Petrolatum Grease, Turbine Oil
Media
- Air
Port Size
- 1/8", 3/8", 1/2"
Port Type
- BSPT
Power Consumption
- 1.2 W (ASC/ASO Only)
Pressure Range (bar)
- Vacuum to 8 bar
Pressure Range (psig)
- Vacuum to 116 psig
Temperature Range (°C)
- -5° to 50° C
Temperature Range (°F)
- 23° to 122
- Cleaning “blast” prior to assembly
- Car painting process
- Swarf removal
- PET bottle transfer
- Cooling
- Ionizer dust removal
- Liquid removal from manufacturing process
